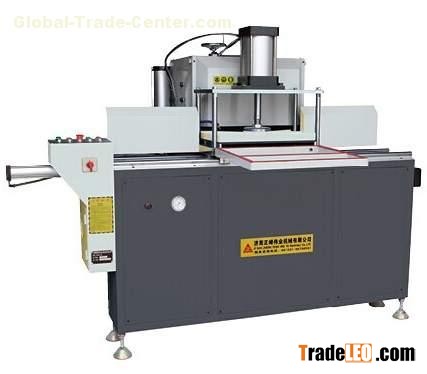

DX02-250

End-milling machine for Aluminum Door and Window

Main Features

1.Used in processing the side surface of profiles for aluminum windows&door. Relied on large worktable and long feed distance, 6-10 pieces of profiles can be processed at the same time . Adjustable multiple cutters need not be replaced when the profiles changed, whcih can save the preparation period and cost of tools . Multiple cutters can work on different profiles individually as weell as simultaneously. Large diameter of cutter makes the processing extne expanded. Thickened pressing board can avoid the deformation of the prifiles. The feeding is completed through the transformation of gas and liquid, which makes the work more stable

2.Processing roughness: RA12.5UM

Technical Parameters

1. Power supply  380V/50HZ

2.Total power 3*2.2kw

3. Motor Rotary Speed  2850r/min

4.Air pressure 0.5-0.8mpa

5. Diameter of milling cutter Ø250mm

6. Overall dimension  2400*1200*2650mm

7. Work table dimension  530*320mm
