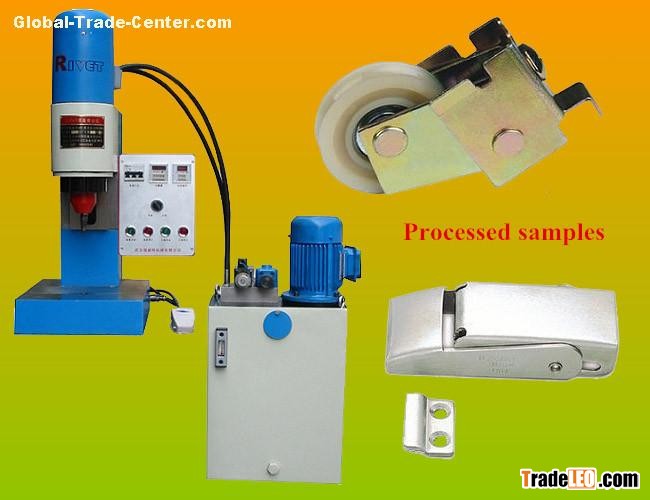

BM9T (Orbital riveting machine)

Characteristics:

■Medium sized desktop style

■Max riveting diameter Ф 9mm

■Power head adjustable

■Hydrauilc driven

■Pressure by stepless regulation

■Rotary part protected

■Double-hand buttons or foot pedal

■Set process time as will

■Automatic and manual functions

Scope of applications : Daily hardware, electronic products, toy products,                                                                              automobile products etc.

Customized available

     BM9T is a kind of medium sized orbital riveting machine and hydraulic drive. It has applied of advanced orbital technology by cold formation. The power head adjustment up and down to meet variety of workpiece's body and shape 's requirement , the positioning hole is coaxial with spindle to ensure riveting process accuracy. Hydraulic system equipped with throttle valve to control piston speed effectively. Electric control system equipped with counter and time relay to make the operation more easy and simple.

Specification:

▲Max riveting diameter                         Ф 9mm ( solid steel rivet )

▲Max riveting pressure                         14Kn

▲Stroke Length Range                         30mm

▲Available working space                    220mm

▲Throat depth                                        160mm

▲Riveting tool length                              50mm  standard

▲Eccentric angle                                    4°

▲Motive force                                         Hydraulic

▲Oil-tank volume                                    50 liters

▲Pressure oil brand                               46# ISO

▲Workbench dimensions                     360mm×290mm

▲Power                                                   0.92Kw

▲Physical size                                        500mm×400mm×980mm

▲Net weight                                            280Kg
