Brand:LION
Model:80-100-120
MOQ:1 Sets

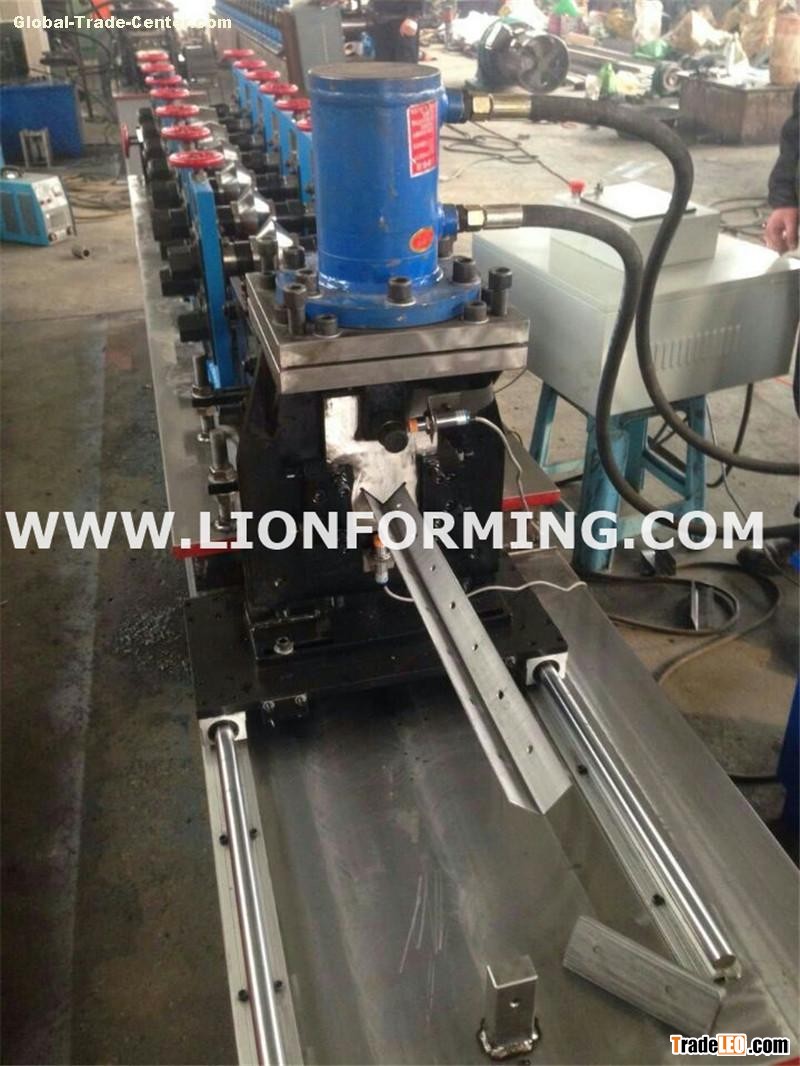

Pallet rack roll forming machine
| 1. width: 80mm/100mm/120mm | ||
| 2. PROCESS FLOW |
|
|
| 3. HYDRAULIC DECOILER: |
| |
| 3.2 max coil width: 600mm | ||
| 3.3 carrying capacity: 1500kg | ||
| 4. FEEDING & LEVELLING DEVICE | ||
| 4.1 A pair of feeding rollers | ||
| 5. PUNCHING MACHINE |
| |
| 5.1 Punching pressure: 80T | ||
| 6. MAIN FORMING MACHINE |
| |
| 6.1 Shaft material & diameter: 45# steel, 90mm Roller material: GCr15 bearing steel 6.2 Forming Stations: 16 stations 6.3 Transmission: gearbox and universal shaft 6.4 Forming Speed: 10m/min ( with holes ) 6.5 base: 400H steel |
| |
| 6.7 Motor: 30kw |
|
|
| 7. CUTTING DEVICE |
|
|
| 7.1 Automatic mould cutting | ||
| 7.2 Hydraulic power 11kw | ||
| 7.3 Mould Material: Cr12 steel | ||
| 8. ConTROLLING SYSTEM |
| |
| 8.1 Panassonic PLC |
| |
We are LION COMPANY from China. we are specialized in
1. light keel machines, like studs, track, angle, T-bar machines,
MAIN-T ( GEARS DRIVE ): USD10,500 FOB XINGANG, CHINA
( GEARBOX DRIVE ): USD12,600 FOB XINGANG, CHINA
CROSS_T ( GEARS DRIVE ): USD10,500 FOB XINGANG, CHINA
( GEARBOX DRIVE ): USD12,600 FOB XINGANG, CHINA
ANGLE ( GEARS DRIVE ): USD5,500 FOB XINGANG, CHINA
( GEARBOX DRIVE ): USD8,400 FOB XINGANG, CHINA
STUD&TRACK ( GEARS DRIVE ): USD13,000 FOB XINGANG, CHINA
( GEARBOX DRIVE ): USD18,000 FOB XINGANG, CHINA
FURRING ( GEARS DRIVE ): USD10,000 FOB XINGANG, CHINA
( GEARBOX DRIVE ): USD16,000 FOB XIGANG, CHINA
MAIN CHANNEL ( GEARS DRIVE ): USD7,000 FOB XINGANG, CHINA
( GEARBOX DRIVE ): USD11,000 FOB XINGANG, CHINA
ANGLE ( GEARS DRIVE ): USD5,500 FOB XINGANG, CHINA
( GEARBOX DRIVE ): USD8,400 FOB XINGANG, CHINA
2. roofing/wall panel machine, glazed tile machine, deck forming machine,
SINGLE LAYER MACHINE: USD24,500 FOB XINGANG, CHINA
GLAZED TILE MACHINE: USD30,500 FOB XINGANG, CHINA
DECK FORMING MACHINE: USD45,900 FOB XINGANG, CHINA
3. shutter door machine;
USD11,800 FOB XINGANG, CHINA
4. C/Z purlin machines,
C PURLIN MACHINE (1.5-3.0mm; 80-300mm ): USD28,000 FOB XINGANG, CHINA
Z PURLIN MACHINE (1.5-3.0mm; 100-300mm ): USD31,000 FOB XINGANG, CHINA
C/Z EXCHANGABLE MACHINE: USD44,000 FOB XINGANG, CHINA
5. guardrail machines, pipe forming and welding machines etc,
GUARDRAIL MACHINE ( TWO WAVES ): USD61,300 FOB XINGANG, CHINA
GUARDRAIL MACHINE ( THREE WAVES ): USD84,000 FOB XINGANG, CHINA
6. similar machines, also any other drawings requested by customers.
if you are interested in us and happen to need these machines, please send us an inquiry, we will offer our best price to start business with you, and we look for long time business with our customers and friends.
Looking forward to doing business with you,
