Applicable Materials:

Plexiglas/ glass/ acrylic/ double-color board/ ABS board/ PVC board/ circuit board/ inscribed wooden slip/ wooden board etc.

Applicable Industries:

Advertisement signs/ marks/ brands/ Blister light box mould/ casting mould/ circuit board manufacture/ electroplating drill/ art craft works/ crystal works/ wood products/ decoration/ upholster and other related industries.

Features:

• The perfect combination of high rigid structure and aero metal has strong stability, can bear large pressure, making the whole machine durable.

• Germany double nuts automatic ball screw with imported linear guide rail.

• High speed motor driver, 2 meters quicker than the old model.

• Continue to engrave after point-break and bits/knife-breaking. Hold more than 9 points.

• Gantry mode movement to make sure long-time use and high precision.

• High power water-cooling spindle has low noisy and high rotating speed, making it cut easier to reach to 20value="30" tcsc="0" unitname="mm" w:st="on">-30mm.

• Professional engraving software. Such as CorelDraw, Type3, Artcam, Castmate, Proe, Artcut and other CAD/CAM software.

• Technical Specifications:

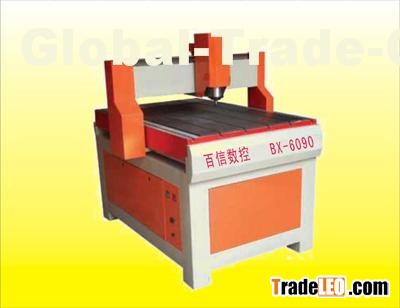

  Model	BX-6090
  X/Y axis working area(mm)	600*900
  Z axis working area	value="120" tcsc="0" unitname="mm" w:st="on">120mm
  Platform Size(mm)	720*1150
  Max. Working Speed	4value="5" tcsc="0" unitname="m" w:st="on">-5m/min
  Max. Engraving Speed	2value="3" tcsc="0" unitname="m" w:st="on">-3m/min
  Resolution	value=".005" tcsc="0" unitname="mm" w:st="on">0.005mm
  Repositioning Accuracy	value=".05" tcsc="0" unitname="mm" w:st="on">0.05mm
  Command	G Code*. U00*. Mmg*. Plt
  Software Surroundings	Windows98/2000/XP
  Power	AC220V/50Hz
  Spindle Power	1.5/2.2Kw
  Spindle Speed	0-24000rpm
  Work Mode	Stepper

   Accessories Chosen By Customer:

  Large Power Spindle/ imported Spindle/ Multi Spindle etc.
