High Quality hot oil thermal furnace
2016-10-03 16:42  Views:222
Price:0.00 USD/-
Brand:bidragon
Model:RYL-MA
MOQ:-0 -
Send Inquiry

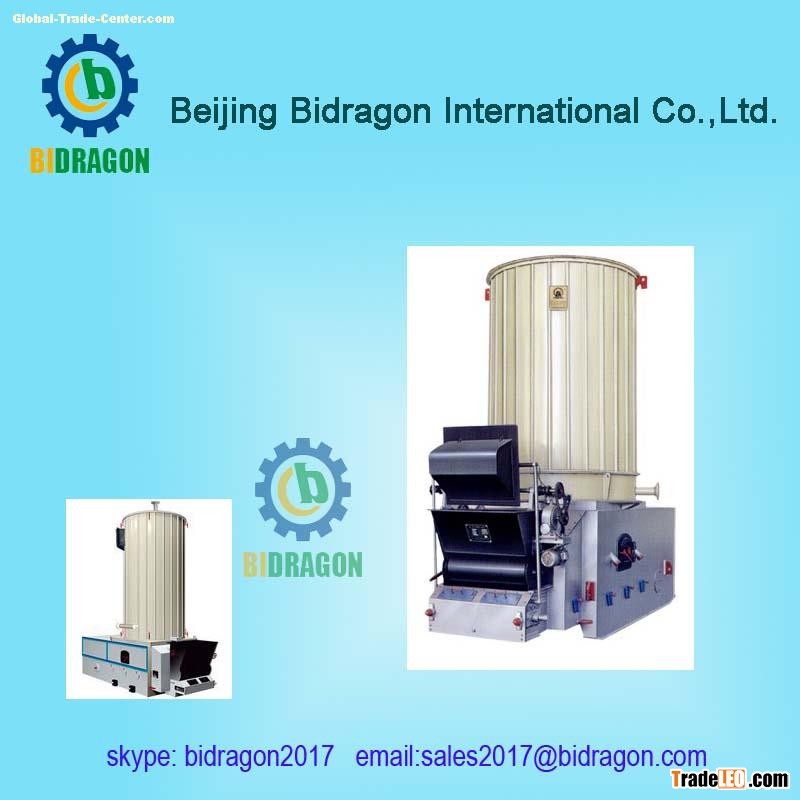

Automatic RYL-MA hot oil thermal furnace



1. Brief Introduction of  Hot Oil Boiler :



The hot oil boiler adopts coal as fuel, and takes the molten salt as heat medium. A circulating pump is used to create liquid-phase circulation of liquid molten salt, then the thermal energy will be transmitted to the heat using equipment. After unloaded in the heat using equipment, the heat molten salt will return to the boiler to be reheated.



2. Products Features of  Hot Oil Boiler :

  1.  The thermal efficiency is higher,and the temperature of liquid molten salt will up to 480 °C.
  2. Heating temperature is more stable by adjusting precisely, and it is easier to obtain higher working temperature under lower pressure.
  3. There are complete operating control and safety detection device on the system.
  4. High thermal efficiency, completely burning, stable output, better adaptability to variable load.

3. Parameters of Hot Oil Boiler :



Type RYL-
1400MA
(120×104
Kcal)		 RYL-
1900MA
(160×104
Kcal)		 RYL-
2400MA
(200×104
Kcal)		 RYL-
3000MA
(250×104
Kcal)		 RYL-
3500MA
(300×104
Kcal)		 RYL-
5200MA
(450×104
Kcal)		 RYL-
6600MA
(550×104
Kcal)		 RYL-
7000MA
(600×104
Kcal)		 RYL-
9300MA
(800×104
Kcal)		 RYL-
14000MA
(1200×104
Kcal)
Rated Thermal Power KW 1400 1900 2400 3000 3500 5200 6600 7000 9300 14000
Thermal Efficiency % ≥65
Pressure Mpa 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
Max. Temp. °C 450 450 450 450 450 450 450 450 450 450
Circulation Oil m3/h 80 90 100 120 140 160 250 300 350 550
Pipe DN 125 125 150 150 150 200 200 250 250 300
System Power kW 80 90 100 120 120 160 240 240 320 400
Fuel                    MA Ⅱ,Ⅲ
Fuel Weight kg/h 350 480 600 720 900 1200 1500 1800 2200 3300
Dimension L   mm 4800 4800 6900 6900 7500 8700 8700 8700 10000 12500
W mm 2100 2100 2500 2500 2500 3000 3480 3480 4400 4400
H mm 6300 7600 8800 10000 8500 10000 12500 13500 16200 18500
Total Weight kg 20000 25000 30000 35000 41000 55000 65000
