Brand:haishun

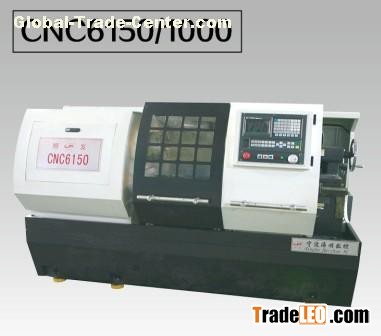

Model:CNC6150
MOQ:-0 -
| Specification | CNC6150/1000 |
| Max. swing over bed | 500mm |
| Max .swing over slide | 280mm |
| Max. work piece length | 930mm |
| Repeatability position accuracy | X axis：0.005mm Z axis：0.01mm |
| The recommended spindle motor power | 7.5KW |
| Maximum spindle speed | 2000 r/min |
| Dia of spindle bore | 82mm |
| Spindle taper | Nose 90mm 1:20 |
| Bar diameter | - |
| X-axis limit travel | 280mm |
| Z-axis limit travel | 935mm |
| Rapid traverse rate | X axis：5m/min Z axis：8m/min |
| Tool post/turret | Four station electric turret |
| Shank size | 25*25mm |
| Sleeve diameter | 75mm |
| Sleeve travel | 150mm |
| Sleeve taper | MT5 |
| Dimension(L*W*H) | 2830*1750*1620mm |
| Weight/approximate weight | 2600KG |
