Brand:haishun

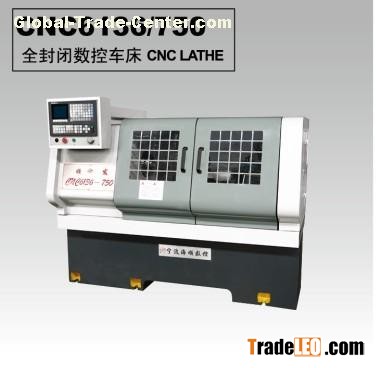

Model:CNC6136
MOQ:-0 -
| Specification | CNC6136/500 |
| Max. swing over bed | 360mm |
| Max .swing over slide | 170mm |
| Max. work piece length | 480mm |
| Repeatability position accuracy | X axis：0.005mm Z axis：0.01mm |
| The recommended spindle motor power | 5.5KW |
| Maximum spindle speed | 2500 r/min |
| Dia of spindle bore | 58mm |
| Spindle taper | MT6 |
| Bar diameter | - |
| X-axis limit travel | 285mm |
| Z-axis limit travel | 480mm |
| Rapid traverse rate | X axis：5m/min Z axis：8m/min |
| Tool post/turret | Four station electric turret |
| Shank size | 20*20mm |
| Sleeve diameter | 60mm |
| Sleeve travel | 80mm |
| Sleeve taper | MT4 |
| Dimension(L*W*H) | 1815*1140*1480mm |
| Weight/approximate weight | 1450KG |
