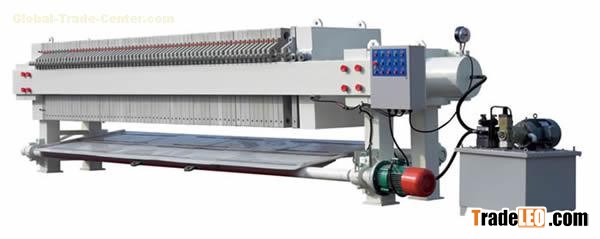

Type 1500 Quick opening high pressure PP membrane filter press - Sell

Type 1500 Quick opening high pressure PP membrane filter press

2016-10-03 16:45 Views:185

Price:0.00 USD/-
Brand:-
Model:-
MOQ:-0 -

membrane filtration plate thickness 90mm, recessed filter plated thickness 80mm.

Filtration area (m2)	Chambers No.	Plate size (mm)	cake thickness (mm)	chamber volume (m3)	Filtration pressure MPa	L1 Anchor hole dimension (mm)	overall dimensions ( mm)			unit weight (kg)	Production capacity T/h
							length	width	height
100	26	Membrane plate 1500×1500 Recessed plate 1500×1500	45	2.15	0.5－0.6	6180	8240	3145	2865	23220	12
150	38			3.17		7760	9820			27150	18
200	52			4.37		9550	11610			31350	24
250	64			5.39		11050	13210			35150	30
