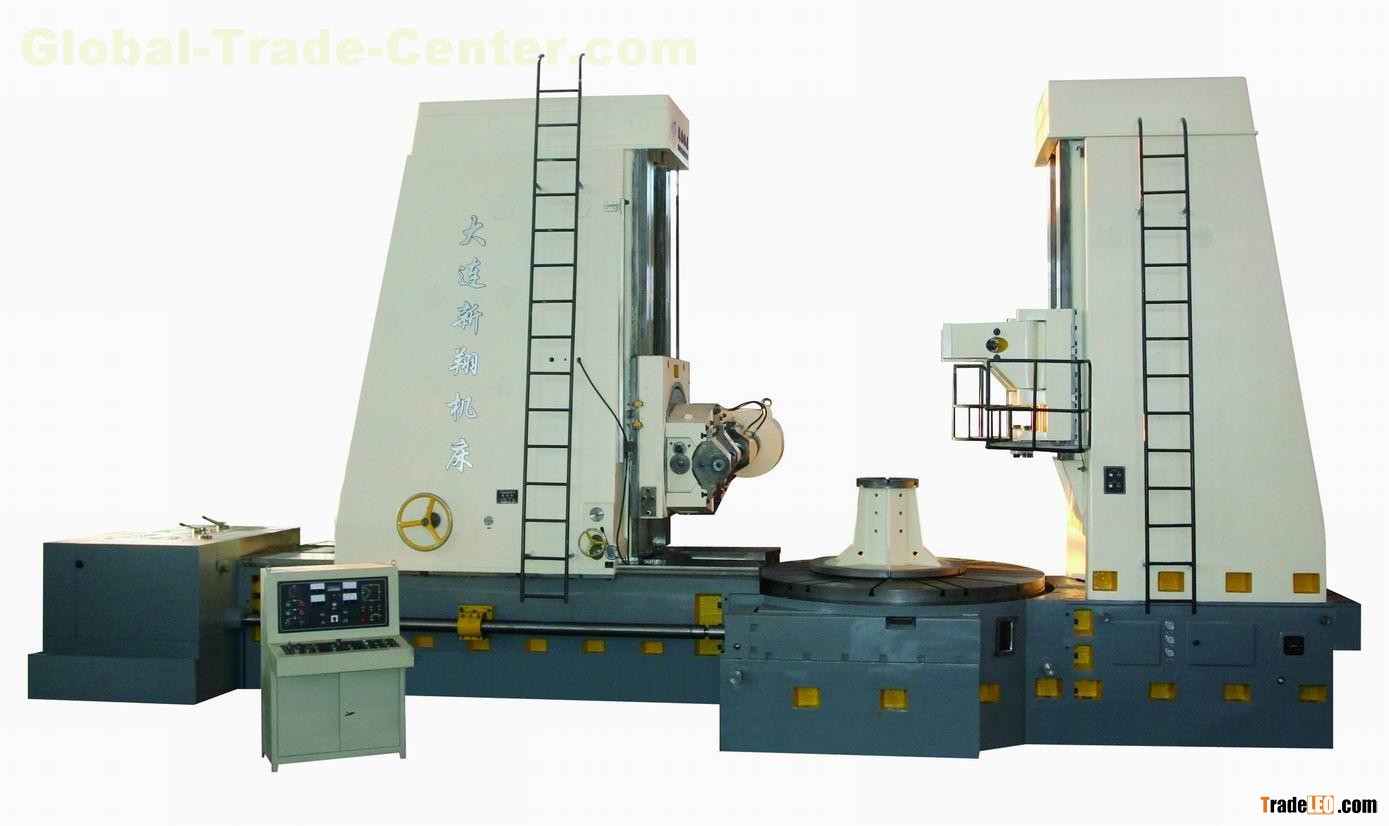

Type Y31315B

Max.workpiece diameter(with rear colum/no rear column) no column   value="3150" tcsc="0" unitname="mm" w:st="on">3150mm

                                              have column   value="2000" tcsc="0" unitname="mm" w:st="on">2000mm

Min.workpiece diameter  value="300" tcsc="0" unitname="mm" w:st="on">300mm

Max.working width  value="1800" tcsc="0" unitname="mm" w:st="on">1800mm

Max.spiral angle  45

Max.hobbing module Hob steel  30

                      cast iron  40

                  Finger-type milling cutter steel   50

                                       cast iron   65

                  Wafer milling cutter steel   40

                                   cast iron   value="55" tcsc="0" unitname="mm" w:st="on">55mm

Max.hob dimension Outer diameter  value="400" tcsc="0" unitname="mm" w:st="on">400mm

 Length   value="500" tcsc="0" unitname="mm" w:st="on">500mm

Tool post vertical stroke  value="1800" tcsc="0" unitname="mm" w:st="on">1800mm

distance from hob center to worktable center Max  value="2350" tcsc="0" unitname="mm" w:st="on">2350mm

                                    Min   200

Hob rotate speed   5.5value="40" tcsc="0" unitname="mm" w:st="on">-40mm

Worktable diameter   2580

Feeding capacity Hobbing vertical   0.186-3.68

                      level     0.34-6.8

                      single(finger type tool post   0.066-1.316

Fast speed Slide base   63-157

         Column   117-292

         Automatic cutter withdrawal  57

Worktable loading capacity   40

Machine total power  45kw

Machine overall dimension Length  value="114500" tcsc="0" unitname="mm" w:st="on">114500mm

                       Width   value="5070" tcsc="0" unitname="mm" w:st="on">5070mm

                       Height   value="5200" tcsc="0" unitname="mm" w:st="on">5200mm

Machine weight(about)    99.6
