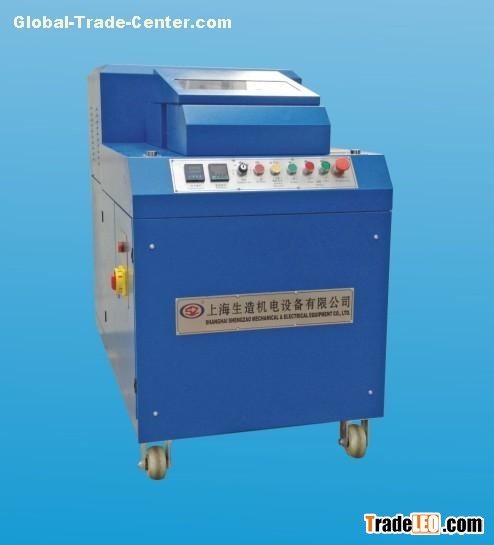

SZ-158 Hydraulic 8mm copper bar welding machine / Hydraulic Cold pressure welding machine /connecting wire machine

Brief description:

1.Can weld oxygen free copper rod, like 8mm copper rod welding, or 3.0m-15mm rod welding

2.Welding point is very strong and can do tensile force test.

3.Can do drawing after welding

4. Automatic and easy movement

Main parameters

1.Motor Power:4KW

2.Working pressure:<=4.5Mpa

3.Rated Voltage:380V/50HZ

4.Oil returning back-pressure:1.5 Mpa

5.Oil temperature<=75

6.External Dimension: 1230*700*1130mm (L*W*H)

7.Weight:830kg

8.Package: wooden case

9. Welding Range of the wire: Copper: 3.00-10.00mm

Aluminum: 3.00-15.00mm
