Brand:shengzao
Model:SZ-3T
MOQ:1 Sets
1.Welding Range(wire)
Copper: 0.80mm-4.0mm; Aluminum: 0.80mm-5.5mm
2. Structure: Precise mould
3. Advantages:
No power, no change of the resistance, clean, light, easy to operate, weld within one minute, aloft working is available.
4. Overall Dimensions: 300mm*190mm *290mm (L*W*H)
5. Material of mould: imported mould Steel
6. Net weight: 33kg, package weight: 42KG
7. Production ability: 1000sets/Month
8. HS code: 8515800090

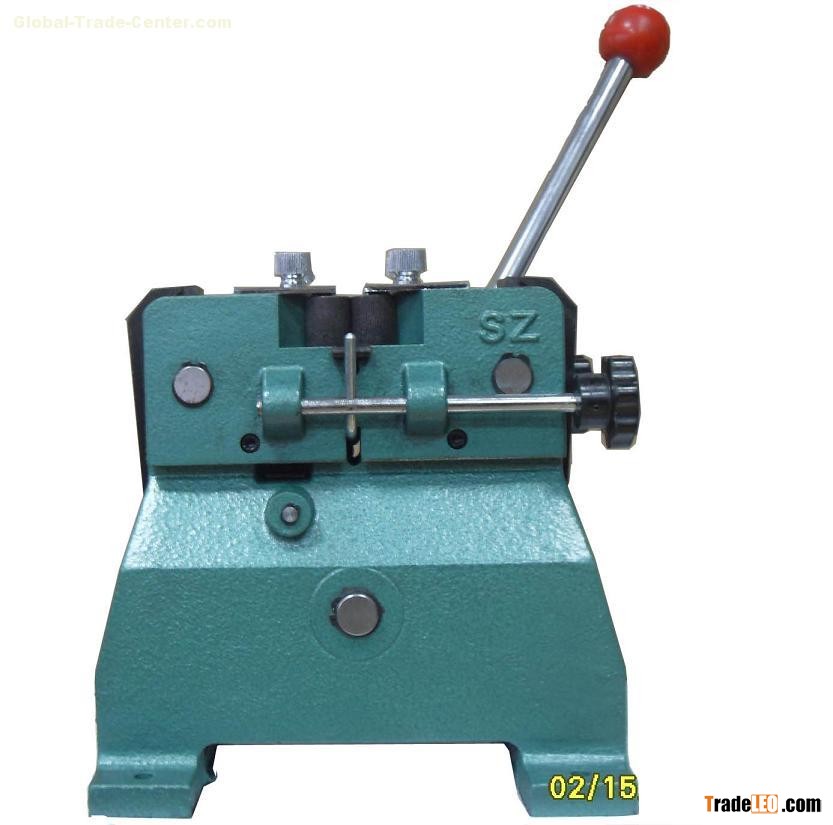

Welding principle: cold pressure welding machine is a kind of machine which is no need for any additives or power. The working process is: thread non-ferrous wire into special dies, squeeze the machine handle, and combined the pure metal grid together by pressure. So realize the principle of molecular and atomic structure connection principle, and welding various non ferrous metal materials. The welding part is very firm, we have tried following test. 01.The resistance test: 02.Pulling force test:
Resistance value is not greater than the original wire.
Constant to the joints, never broken in the joints
