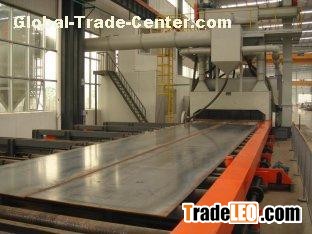

Steel Plate / Sheet Shot Blasting Machine with Painting / Dry System

Description:

This shot blast production line used to Polish and Paint steel plate, steel sheet. It is with painting and drying system etc.


Special Features:

This Steel Plate Shot Blasting Production Line contains shot de-dusting chamber, cleaning chamber, painting system, dry system, dust removing unit which are linked by rollers conveyors.



Specifications:

 O Steel plate:

+ Width: 1, 000 to 3, 000mm
+ Thickness: 3 to 60mm
+ Length: 2, 400 to 12, 000mm


O Profile steel:

O Width: 1, 000 to 2, 200mm
Height: 400mm
Length: 2, 400 to 12, 000mm
* Table permission load: 1.2T/m
* Transfer speed of working piece: 0.5 to 4m/min

* For more details, it is available at your request.
* Special design based on requiements of customer is available.
