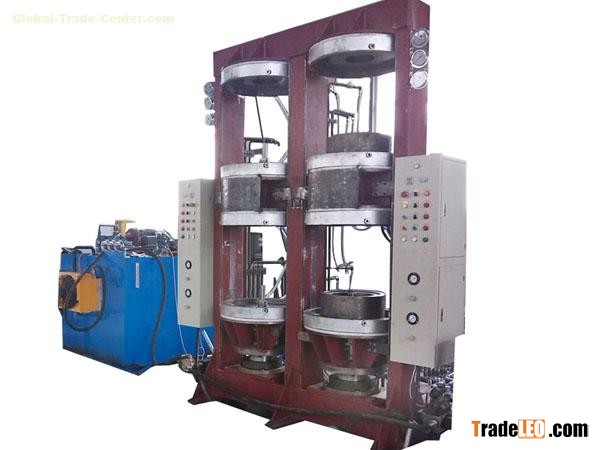

Structural Form:

2 set running together,2 layer/set

Quantity of vulcanized tires:

one groups of four line

Vulcanized tire specifications:

10″- 14″

Vulcanized tire section:

2.5″- 3.75″

Maximum mould closing force:

(oil pressure Max 21MPa) 100ton

Mould clsoing force:

(oil pressure16MPa) 80ton

Internal diameter of plate:

Φ700

Space of hot plate:

800mm

Mould thickness:

110 - 150mm

Maximum height of green tire:

300mm

Mould installation method:

Puller M20 bolt circle and 90 degree distribution

Pump motor power(KW):

7.5(mould closing motor) / 2.2(mould opening motor)

Plunger diameter:

Φ250mm

Maximum travel of plunger:

1400mm

Mould closing speed:

50mm/second (one equipment only)

Mould opening speed:

23mm/second (one equipment only)

Curing mode:

Capsule sulfide and center pole (nitrogen)

Central mechanism thread:

Tr95×4Tooth/Inch

Central rod diameter:

Φ35mm

Centre rod travel:

265mm

Demolding mechanism travel:

80mm

Interal capsule medium:

Vapor,hot water,high-pressure wind or nitrogen

vapour pressure of heat plate:

Max 10kgf/cm2

Pressure of hot water,high-pressure wind or nitrogen:

Max 23kgf/cm2

Pressure of compressed air:

6-8 kgf/cm2

Vacuum pressure:

(self-made)-100mmHg

Product quality:

6000kg

Overall  Dimension

L×W×H (mm)

4500×1650×1870mm
