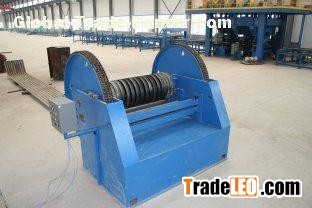

Pipe Panel Bending Membrane Switches, Membrane Panel Production Line

Bending the welded pipe panel into the required size, motor as power, with the advantages of simple structure, ease of operation.

Main technical parameter

Model:   1600

Diameter of pipe:   3876mm

Thickness of pipe wall:   3.57mm

Bending radius:   ≥5D (D-diameter of pipe)not more than maximally 500mm

Bending angle:   ≤150°

Width of pipe panel:   ≤1600mm

Bending speed:   0.26rpm

Bending torque:   170KNm

Composition:

Mechanical components are composed of motor driven system which is composed of motor, decelerater and main axes; mechanical bending system which is composed of bending die, supporting roller, positioning clamper and bending rollers situated at chain disk side to side,   bending die is composed of flat die and trough shaped die, equipped with one complete set of tools .  Electrical control system is composed of encoder, raster and other control elements, realizing numerical setting, displaying bending angle, manual or automatic bending.
