Brand:ZH brand
Model:E400 reciprocation
MOQ:1 Sets

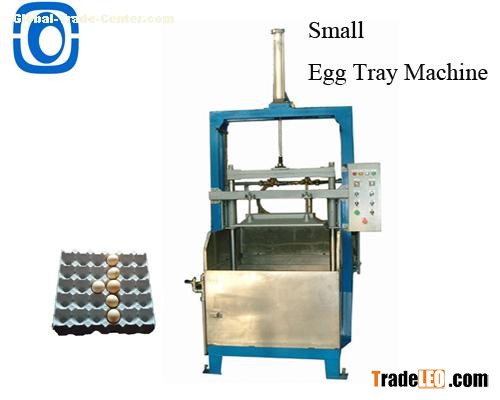

E400 egg tray/box forming machine (Semi automatic)
1.Mainly producing the pulp molded products,such as egg tray ,egg box, fruit tray,coffee tray, industrial tray
2.Material for the molded pulp products is waste paper,corrugated paper,waste newspaper,magazines
3.The main energy can be chosen from diesel oil, natural gas ,LPG, heavy oil,coal,electricity etc,depending on local cost.
4.We have the egg tray machine with output from 400pcs/hr to 20000pcs/hr.
5.Fully-automatic control, PLC+Touch screen controller.
6.Stainless steel pulp tank,the surface of platens covered with stainless steel.
Features of Small Egg Tray Machine
1. Stable performance, safe and reliable, easy to operate;
2. Low investment cost, less land area and less operating people;
3. Obvious society benefits and prominent economy benefits;
4. High and reliable quality, save energy.
5. One piece of forming platen and transferring platen equipped. Platen size: 750*400mm. It can be mounted 2sets of 30-cell egg tray mold on the platen (2pcs/cycle). Cycle time: 15-20 seconds/cycle.
Data
Occupation: about 400m2.Requirement for the
Workshop: height ≥4.5m, width≥10m, length≥45m.
Total power for the production line: 63KW.
Workforce for the egg tray machine: 1-2 people/shift.
Capacity
| Type of products | 30-cell egg tray | 12-cell egg carton/box | 10-cell egg carton/box | 6+6-cell egg carton/box | 6-cell egg carton/box | Fruit tray | Cup carrier |
| capacity (PCS/HR) | 400 | 400 | 400 | 400 | 800 | 200 | 500 |
Consumption
| NO. | DESC | ConSUMPTION PER HOUR |
| 1 | Waste Paper | 30-35kg |
| 2 | Electricity | 70-80kw |
| 3 | Water | 0.5-1T |
