Brand:ZH brand
Model:E6000 rotary
MOQ:1 Sets

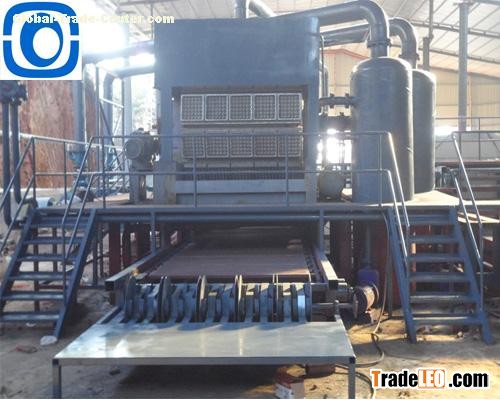

E6000B(full auto, rotary, 4 layer drying line)
1, mainly producing the pulp molded products,such as egg tray ,egg box, fruit tray,coffee tray.
2, Material for the molded pulp products is waste paper,corrugated paper,waste newspaper,magazine.
3, Fuel can be coal , natural gas ,diesel , wood . 4, stainless steel pulp tank,the surface of platens covered with stainless steel.
5, The drying part can be traditional conveyor belt or metal multi-layer dryer.
Capacity and products pictures
| Type of products | 30-cell egg tray | 12-cell egg carton/box | 10-cell egg carton/box | 6+6 cell egg carton/box | 6-cell egg carton/box | Fruit tray | Coffee tray |
| capacity (PCS/HR) | 6000 | 6000 | 6000 | 6000 | 6000 | 4200 | 7700 |
Remarks: The capacity calculation takes the production of 30 cavity egg trays as the standard.(Size 310x290MM, weight 50-80g)
Consumption of full auto paper egg tray machine
| SL | DESC | Consumption/hour | remarks |
| 1 | Waste paper | 408-424kg | / |
| 2 | Electricity | 342-481kw | / |
| 3 | Water | 3.6-4.6ton | / |
| 4 | 0#diesel oil | 88-106kg | Choose one |
| natural gas | 102-139m3 | ||
| LPG | 86-109m3 | ||
| 5 | Chemical for waterproof | 4.1-5.0kg | Solid content |
| The calorific value of the fuel | 10000k Carl/kg for diesel oil | Energy consumption calculation is based on this data | |
| 8000k Carl/m3 for natural gas | |||
| 10000k Carl/ m3 for LPG | |||
Parameter and pictures
1). Production line occupation: about 2000m2, workshop: height≥5.5m Width≥24m length≥84m
2). Total power for the production line: 498kw
3). Workforce for the production line: 8-9people/shift
4). Pulping system: pulper,3m3, 55kw;vibration screen,1.8m2, 3kw
5). Forming system: Platen size: 1600*400mm. 10pcs forming molds and 5pcs transferring molds. 20 cycles/min.
6). Drying line: 24X2.12X4.2M ; 6 layers conveying chain
7).Subsidiary parts:Vacuum pump, 88kw, 1 set, air compressor (30kw, 1set)
Pictures together with customers
