Brand:ZH brand
Model:E5000 rotary
MOQ:1 Sets

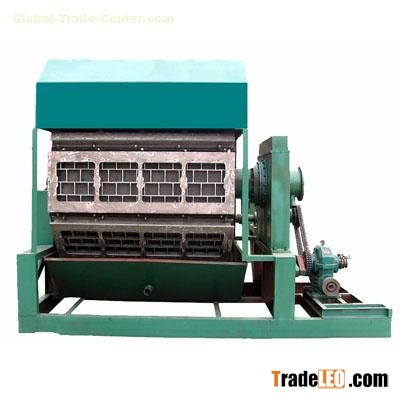

E5000A(full auto, rotary, 1 layer drying line)
1, mainly producing the pulp molded products,such as egg tray ,egg box, fruit tray,coffee tray.
2, Material for the molded pulp products is waste paper,corrugated paper,waste newspaper,magazine.
3, Fuel can be coal , natural gas ,diesel , wood . 4, stainless steel pulp tank,the surface of platens covered with stainless steel.
5, The drying part can be traditional conveyor belt or metal multi-layer dryer.
| Type of products | 30-cell egg tray | 12-cell egg carton/box | 10-cell egg carton/box | 6+6 cell egg carton/box | 6-cell egg carton/box | Fruit tray | Coffee tray |
| capacity (PCS/HR) | 5000 | 5000 | 5000 | 5000 | 10000 | 3200 | 6400 |
Remarks: The capacity calculation takes the production of 30 cavity egg trays as the standard.(Size 295X295MM, weight 60-65g)
Parameter and pictures
1). Production line occupation: about 1600m2, Requirement for the workshop: height≥5.5m Width≥24m length≥82m
2). Total power for the production line: 498kw
3). Workforce for the production line: 7-8 people/shift
4). Pulping system: pulper,3m3, 55kw;vibration screen,1.8m2, 3kw
5). Forming system: Platen size: 1600*440mm. Total 20pcs forming mold and 5pcs transfer mold. 17cycles/min.
6). Drying line: 50X2.12X2mm ; 1 layer drying line
7).Subsidiary parts:Vacuum pump, 86kw, 1 set, air compressor (28kw, 1set)
