Technical data

temperature range: -240°C-- + 270°C

pressure: from vacuum up to 200 bar

Chemical resistance: pH 0 – 14

Features

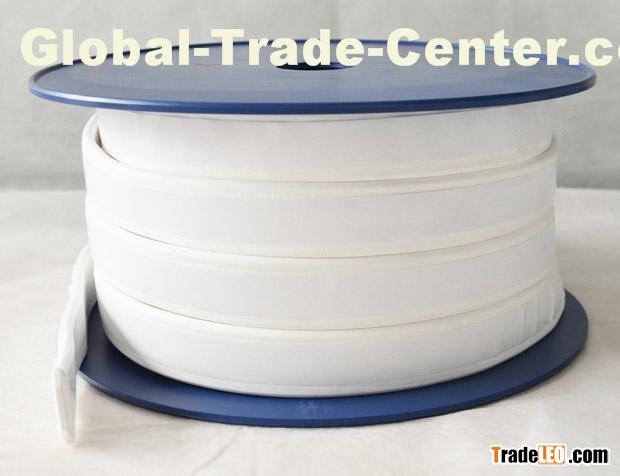

It is produced by a special monoaxial stretching process from 100% pure PTFE. An adhesive strip - approved for use with foodstuffs - makes installation quick and easy.

Advantages

Seal irregular face joint, out-of-parallel, damaged flange faces,

For applications where a certain remaining gasket thickness is required.

Quick and easy installation

Adhesive strip aides installation - excellent malleability compensates

Reference applications:

For all kinds of flanged joints

For housings of pumps, compressors, etc.

As a lid seal for various containers and vessels

For pressure sensitive and stress sensitive joints where only a low flange load may be applied

Sealing of tube heat-exchangers
