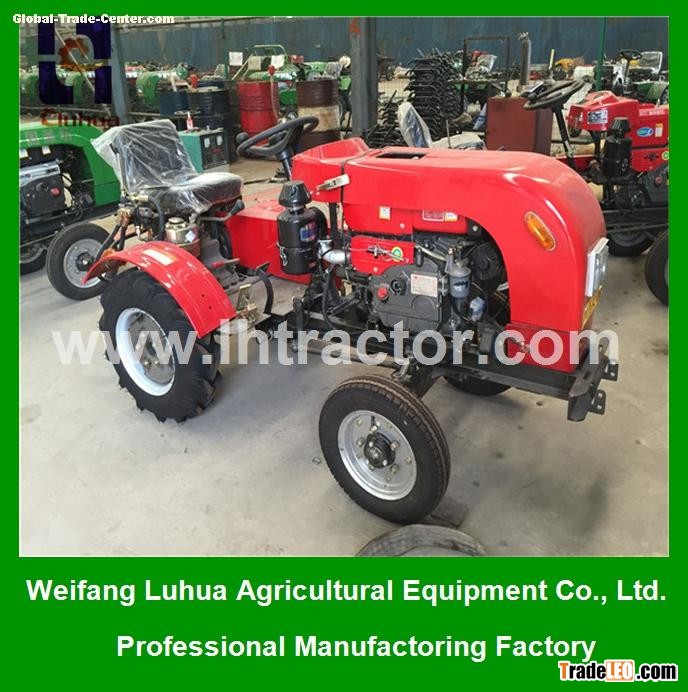

Farm four wheel mini tractor

Model

LHT-15HP

Overall Dimensions:(L×W×H)

2950×980×1240mm

Wheel tread

570,630,690,750,810mm

Tyres

Front 6.00-12

Rear 4.00-8

Skid Wheels

2 Nos. 40Kg

Ground clearance

210mm

Working weight (with rotary tiller)

480 kg

Speed (km/hr)

Forward 1.39, 2.47, 4.15, 5.14, 9.12, 15.30

Reverse 1.10, 4.10

Rotary tiller

Model:1GL-60

Whole weight: 118 kg

Width 600 mm

Transmission type: chain drive

Turning Speed: Low:199, High:250

Number of blades: 18 pieces

Engine Information

Model

CF16N(M)

Type

Single cylinder,4-stroke,horixontal,water-cooled,diesel

Cooling model

Condenser (Radiator)

Rated power

10.29kw

Rated speed

2400rpm

Fuel efficiency

≤241.5gl/kw.hr

Net weight

450 kg

Packing

Case dimensions 116×108×108cm

N.W/G.W 480/540 kg
