Brand:DK
Model:SYLQ
MOQ:1 Sets
Introduction :

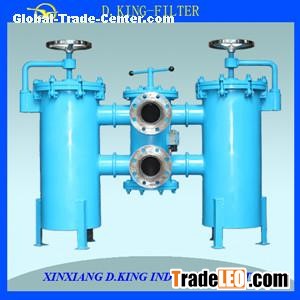

Duplex oil return filter SYLQ-BL series is made of two monocular and a change valve . mating BLLX series unite type filter element . The structure of filter simpleness , convenient to use , and with balanced valve and differential pressure send message receptor , in order to reach ensure system security .
Working principle:
There is only one filter to operation in normally work . You can not stop the system then open the pressure balance valve and roll reversing vales .switch to another filter to work , when the filter pressure loss exceed(more than 0.35 MPa ) and then clean or replace the filter element .
Use scope:
This filter is widely used in metallurgical machinery , mining machinery , heavy-duty machinery etc hydraulic system.
Model:
| Assembly model | DN（mm） | Flow capacity（L/min） | Micron rating（um） | Nominal pressure（MPa） | Pressure loss（MPa） | Mating filter element model | |
| Initial | Max | ||||||
| SYLQ-BL65 | 65 | 400 | 20 25 30 40 80 120 | 1.6 | No more than 0.1 | 0.35 | BLLX-171×265 |
| SYLQ-BL80 | 80 | 600 | BLLX-171×464 | ||||
| SYLQ-BL100 | 100 | 1000 | BLLX-231×464 | ||||
| SYLQ-BL125 | 125 | 2500 | BLLX-355×464 | ||||
| SYLQ-BL150 | 150 | 2500 | BLLX-355×464 | ||||
| SYLQ-BL200 | 200 | 4000 | BLLX-355×760 | ||||
