Brand:mingmei
Model:-
MOQ:1 Sets
Send Inquiry

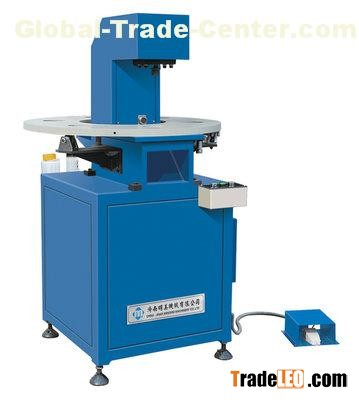

It is used to punch various holes and end face profiles of aluminum alloy doors and windows.Invertible workbench that can be mounted with six dies at one time.It can easily design and mount single-station die.Hydraulic driven for great driving force, enabling it to punch complex holesThe machine has an open structure with flexible operating positions.Parameters:Input Power 1.5kw Power Supply 380V/50Hz Rated Pressure 15MPa Oil Tank Capacity 20L Nominal Pressure of Punch 185mm Shut Height 185mm Punching Stroke 30mm Die Dimensions 250*200*215 Dimensions 1000*1200*1700 Weight 500kg or so
