Brand:yadong
Model:550
MOQ:1 Sets
| Mode | XK-550B | XK-660 | |
| Roller diameter (mm) | Φ550 | Φ660 | |
| Working Length of the roller(mm) | 1500 | 2130 | |
| Working Linear speed of front roll (m/min) | 27.94 | 28.1 | |
| Friction Ratio of front and rear roll (m/min) | 11.22 | 11.24 | |
| Max Gap(mm) | 15 | 15 | |
| Capacity per batch (kg) | 50-60 | 165 | |
| Driving motor power ( Kw ) | 110 | 245 | |
| Overall dimension (mm) | L | 5900 | 7465 |
| W | 2680 | 3662 | |
| H | 2080 | 2750 | |
| Weight (kg) | 27000 | 6500 | |
| Note: | Bearing | ||

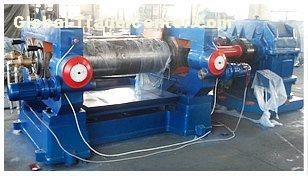

Mainly used for plasticating crude rubber, mixing of rubber materials, warming up of mixed rubber and pressing to sheets etc.
