Main Specification and character:

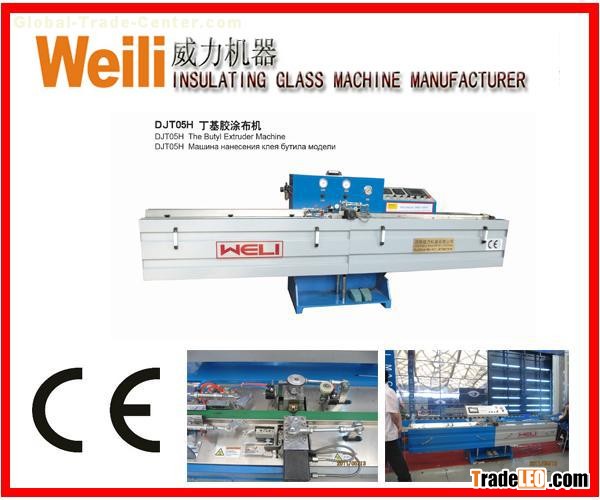

1 it is automatic butyl extruder

2 the whole body frame is made by CNC bended stainless steal

3 applied 5.7 inches color man-machine interface, at the same time, PLC Control system can be oriented and transfer

4 adopt stepless speed regulation and ensure aluminum frame transmission stable

5 Auto-induction system induct aluminum width and adjust the distance between nozzles, which can make extrude evenly.

6 put the aluminum on the transmission belt , and when aluminum frame run, the worker hold it .when aluminum frame go through the sensor, transmission pinch roller and glue valve work according to the setting program. All the program, time setting and transmission speed will control by PLC .

7 this machine adjust import pneumatic and hydraulic supercharging system and make supply voltage stable, guarantee extrude evenly.

8 cylinder’s diameter is 195mm. cylinder lining is firstly made by coarse grinding and then hard chromium plating. Finally, after refined grinding to reach needed size.

9 this machine with the function of auto power on and delay shutdown.

10 can be extruded to the arc aluminum frame.

Main Technical Parameter
