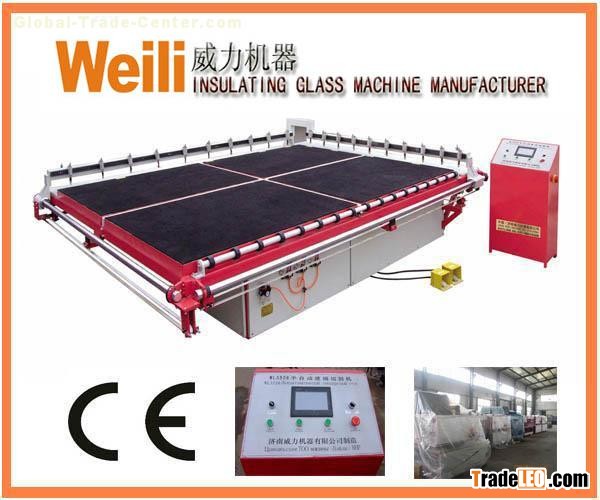

Brand:weili
Model:WL3826
MOQ:1 Sets
Main feature and function:
1 double mechanical movement bridge system, automatically driving by motor.
2 the operation is simple. Multiple-cut improved the efficiency, even large sheet of glass can be completely cut one time
3 PLC control system for easy setting of cutting speed and size
4 air float cutting table make it easy for loading and unloading glass sheet.
5 Auto breaking system
6 the multiple cutting points can work automatically, which saves working force and manual work.
7 buyer’s special specification is available.
Main technique parameters
| Product Name | Type | Max Cutting Size(mm) | Machine Dimension (L*W*Hmm) | Total Weight (KG) | Cutting Accuracy (mm/m) | Cutting Speed (m/min) | Total Power(KW) | Cutting thickness | Power Supply |
|
Semi-auto Glass Cutting Machine | WL3826 | 3660*2440 | 3800*2560*830 | 3000
|
±0.2 |
0-120 |
≤8 |
1.5-19 |
380V 3-p 50Hz |
| WL2621 | 2440*1830 | 2500*2000*830 | 1650 | ||||||
| WL6040 | 5660*3660 | 6000*4000*830 | 4800 |
