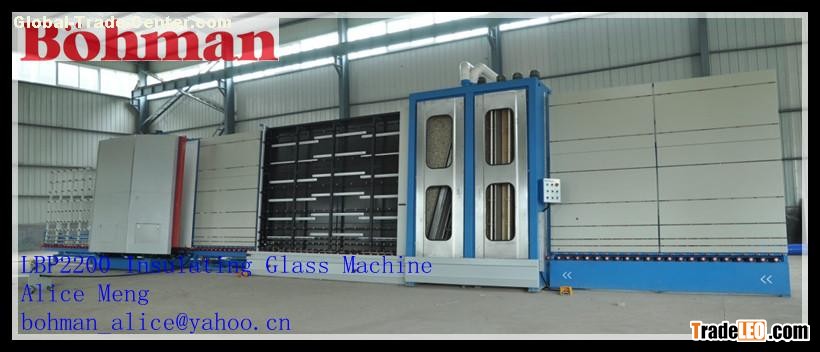

Brand:Bohman
Model:LBP2200
MOQ:1 Sets
1. Main Technical Parameters
| Model | LBP2200 |
| Input Voltage | 380V 50Hz |
| Total Power | 28 Kw |
| Working Speed | 12-48 m/min |
| Max. Glass Size | 2200*3000 mm |
| Glass Thickness | 3-12 mm |
| Outside Dimension | 18500*2580*3120 mm |
| Weight | 7000 kg |
2. Machine Introduction
1. Low-E insulating glass production line
2. Automatic control function for Low-E Glass (3-brush treatment for Low-E)
3. 2-monitor using system, Temperature/ Speed/ Production volume, Mechanical trouble check, Whole line control function with 1 monitor
4. Specially designed for step insulating glass and three layers insulating glass processing
5. Full distance automatic changeable frequency speed adjustment, which can save work waiting time and improve production effciency.
6. When glass is pressed, the front and back part of flat pressing machine willup the glass with lever-type arm and hand system,(machenical position & mobile sucking system) all this will ensure no malposition.
