Brand:LKBT
Model:-
MOQ:1 Sets

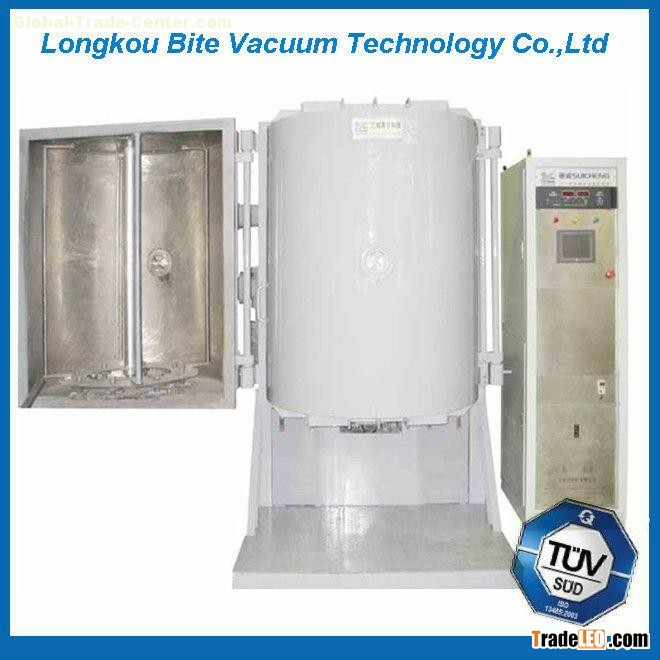

1 vacuum coating machine(ZZ-) adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire.
2 The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.
3 Characteristic: reasonable structure, even film, good-quality film forming, quick pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.
4 Coating color: gold, silver, red, blue, green, purple, multi color, and so on
| Mode Dimension | LH-800 | LH-1100 | LH-1250 | LH-1600 | LH-1800 |
| 800*1000mm | 1100*1000mm | 1250*1500mm | 1600*1800mm | 1800*1800mm | |
| Maily application | metal decorative coating and Ceramic decorative coating | ||||
| Coating mode and main confirguration | Eight multi-arc targets | Ten multi-arc targets | Twelve multi-arc targets | Twenty multi-arc targets | Twenty two multi-arc targets |
| Power source | Electric-arc power, Filament power, | ||||
| Process gas control | Mass flowmeter + Electromagnetic ceramic valve | ||||
| Vacuum chamber structure | Vertical side opening door, pump system postposition, double water cooling | ||||
| Vacuum system | Molecule pump +Roots pump +Mechanical pump(8.0*10-5Pa) Diffusion pump +Roots pump +Mechanical pump(8.0*10-4Pa) | ||||
| Workpiece baking temperature |
Normal temperature to 350 centi-degree PID control, radiation heating. | ||||
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute | ||||
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa | ||||
| Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode | ||||
| Remark | We can design the dimension of the equipment according to customers special technique requirement. | ||||
