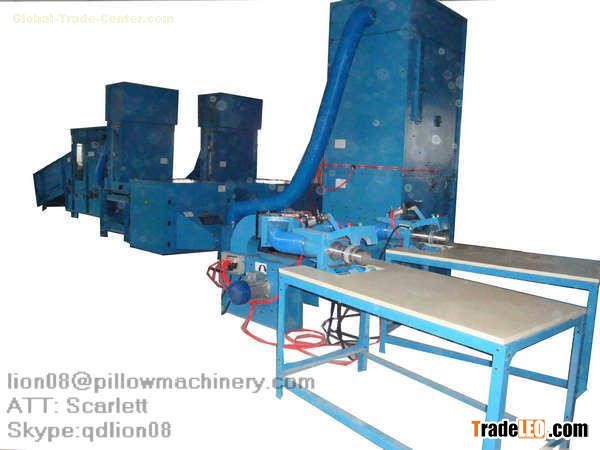

Automatic Ball fiber pillow filling machine

Specification:

Ÿ   Item no.: QL008c

Ÿ   Layout Dimension: 15000*3600*3600mm

Ÿ   Equipment: Bale opener--3-way blower--Feeding hopper*2--Ball fiber machine*2--Blower*2--Mixer--Operation table

Ÿ   Voltage: 480v 60Hz 3phase

Ÿ   Power: 39.35kw

Ÿ   PLC: Siemens

Ÿ   Material: Conjugate hollow siliconized polyester fiber 7D/15D * 51/64mm

Ÿ   Air pressure: 0.6-0.8Mpa

Ÿ   Capacity: Min.180-240kg/h

Ÿ   Operator: 1 person

Ÿ   Weight: Min. 7450kg

Description:

Ÿ   The whole line is assembled with an automatic bale opener which is developed recently; Fiber blower 3 way device; 2 sets of ball fiber machine; a fiber storage and automatic filling table.

Ÿ   The 2 sets of ball fiber machine are running all the same time to achieve enough capacity.

Ÿ   Put a whole bale raw material of fiber into the bale opener which will be transported to the ball fiber machines separately and automatically controlled by PLC control system.

Ÿ   The whole line can be handled by only one operator working at the filling tables.

Ÿ   First of all set up the producing time from the control screen according to the ball fiber size required; note that the longer time the smaller size.

Ÿ   The second sent up the filling time from the control screen according to the production filling quantity after testing, such like pillow 50*70cm with 600g and the filling time can be around 10second and so on.

Ÿ   There are 2 operation functions in the control program which is adjustable filling time set up and filling time controlled by foot switch manually.
