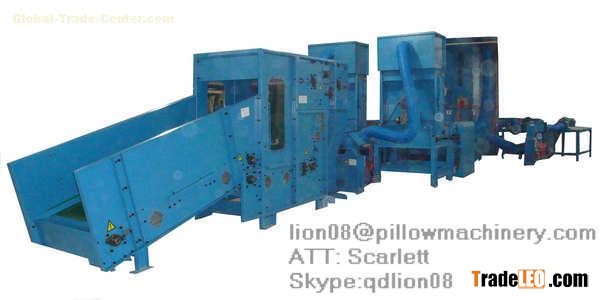

Automatic Ball fiber filling machine

Specification:

Ÿ   Item no.: QL006C

Ÿ   Layout Dimension: 15000*3300*3600mm

Ÿ   Equipment: Bale opener--3-way blower--Feeding hopper*2--Ball fiber machine*2--Blower*2--Mixer--filling device

Ÿ   Voltage: 480v 60Hz 3phase

Ÿ   Power: 40.85kw

Ÿ   PLC: Siemens

Ÿ   Material: Conjugate hollow siliconized polyester fiber 7D/15D * 51/64mm

Ÿ   Capacity: Min.180-240kg/h

Ÿ   Operator: 1 person

Ÿ   Weight: Min. 7600kg

Description:

·           Automatic ball fibre filling machine is mainly used to fill ball fibre into a bag.

·           The machine can be arranged for non-airing bag such like plastic bag, also airing bag such like plastic woven bag.

·           The filling device diameter can be produced by clients requires.

·           PLC control system that can be handled by only 1 person working for the filling device, as the whole bale raw material can be already contained by the bale opener and sent to the ball fiber machine belt automatically

·           The filling time can be already set up from the control screen according to the weight and bag size against the testing data.

·           Double hand control system saves labour well.

·           All electricity key parts are adopted by the most famous world brand such like Siemens and Omron that is stable quality and has international service department in your local area.

·           The machine is running calmly because of the well dynamic balance processing.
