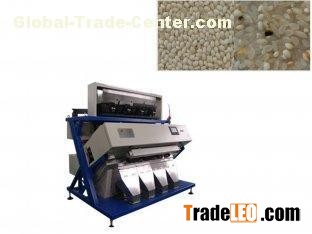

220V / 50HZ 0.08mm Recognition Accuracy Grain Color Sorter Machines
Specifications:
| Model | HJ-C5R |
| Machine weight (kg) | 1050 |
| Dimensions(L×W×H)cm | 211×142×143 |
| Channels | 315 |
| Materials handling capacity (T/H) | 3.5-4.0 |
| Accuracy of color selection | ≥99.5% |
| Best "out of ratio" | >10:1 |
| Host power | 1.6 |
| Air pressure | ≥0.6Mpa |
| Air consumption (L/min) | 800-3000 |
| Power supply voltage | 220V/50HZ |
1. Using imported 2048 pixel true color CCD linear array camera, recognition accuracy up to 0.08mm, and take machine vision into production in this industry;
2.Using linear array image scanning technology , high-speed intelligent image acquisition system;
3. Using the most advanced U.S. technology for programming device, and the embedded software operation platform make system more stable, response faster and function more powerful;
4. The system is added to special algorithm, such as shape selection, and area algorithm, to solve problems like sorting some kinds of beans according to their shape , color , and area at the same time and expand the scope of application of color sorter , and make multi-function , multi species of color sorting come true;
5. Using the most advanced LED optics technique in the world, machine has longer life , better uniformity, more wide color areas, and lower power consumption, the power consumption is only 10-30% for general lighting ;
