Brand:ZHUDING
Model:NWSCD650
MOQ:1 Sets
Send Inquiry
PERFORMANCE AND CHARACTERISTIC

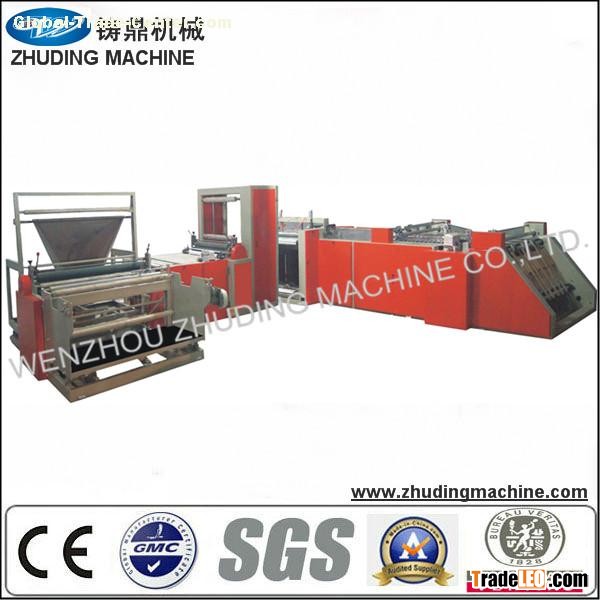

This machine is for nonwoven fabric bag making, with automatic bottom sewing and side sewing two Japanese newlong sewing head, PLC control, Touch-screen operation, servo motor for making exactly size, withg auto tension and edge guider device. Pneumatic take-up raw materical roller. It is our factory latest machine product.Very popular in maket for making non-woven fabric heavy duty bag(80-150GSM non-woven fabric). If we set 2 program in PLC and use special cut blade, this machine can make woven sack at same time.
MAIN TECHNICAL PARAMETER
| MODEL | NWSCD650 |
| Max. dia of cloth roller | 1200mm |
| Fabric max. width | 1300mm |
| Folding width | 650mm |
| Cutting length | 1200mm |
| Max cutting width | 680mm |
| Gross power | 8kw |
| Production capacity | 25-30pcs/min |
| Cutting precision | ±4mm |
| Weight | 2500kg |
| Dimension of machine | 6*9*1.8 |
BAG SAMPLES:
