Brand:tianchen
Model:SJ-FS5.5-110 IIB/600
MOQ:1 Sets

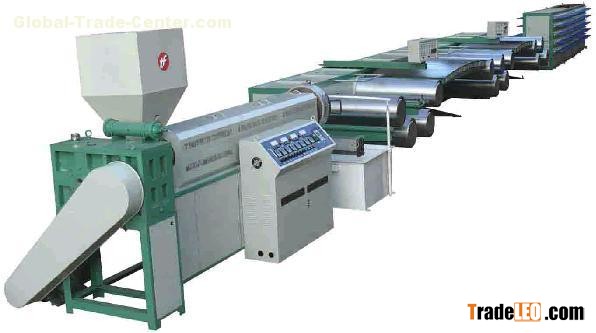

PP flat yarn drawing extruder machinery
SJ-FS5.5-110IIB/600 SERIES TAPE EXTRUDING & STRETCHING MACHINE
This machine uses the Polypropylene(PP) or high density polyethylene(HDPE) material to produce tapes for PPwoven bags,weaving through production procedures of material heating & extruding,splitting the film into tapes.stretching & forming tapes,and then winding on the bobbins by winding machine,finally put the bobbins with tapes on circular loom for weaving.
The tape extruding & stretching machines are our,With the use of special and advanced technology,we have refored this series machine many times.Through iproving,the machine can be fit for all kinds of PP&PE material,such as 100% recycled material,powder or grain material,to produce tapes.The screw and barrel of extruder are ade of high quality 38CroA
Patent No:ZL99219359.1 ZL00202490.X ZL99242134.9 ZL01208472.7
Main Technical Variables
| Model | SJ-FS5.5-110 IIB/600 |
| Diaeter of screw | |
| L/D ratio of screw | 20﹕1 |
| Revolution of screw | 10-55r/min |
| Motor power of extruder | 18.5kw |
| Heating power of extruder | 24kw |
| Width of die-lip | |
| Diameter of drum | |
| Number of arch heating plate | 2pcs |
| Heating power of the plate | 15kw |
| Stretching ration | 4-7 |
| Production capacity | 30 |
| Winding speed | 20 |
| Number of winder | 100spindles |
| System installed capacity | 98kw |
| Normal operational capacity | 64kw |
| Weight | |
| Overall dimension(J*W*H) | 23600×2500×1800mm |
