Brand:JINYU
Model:JY-XC01
MOQ:1 Sets
application:
applies to PU shoes cover ,glove,trademark, mobile phone bag.
technical specification:
| clamping force | 30 ton |
| locking mould pressure | 200kg/cm^2 |
| stroke | 450mm |
| horse power | 3.7HP |
| electrical power | 84.7KW |
| gross weight | 4500KG |
| type of mold opening | up and down |
| working table size | 600*600mm |
| machine size | 3200*1450*1900mm |
samples:

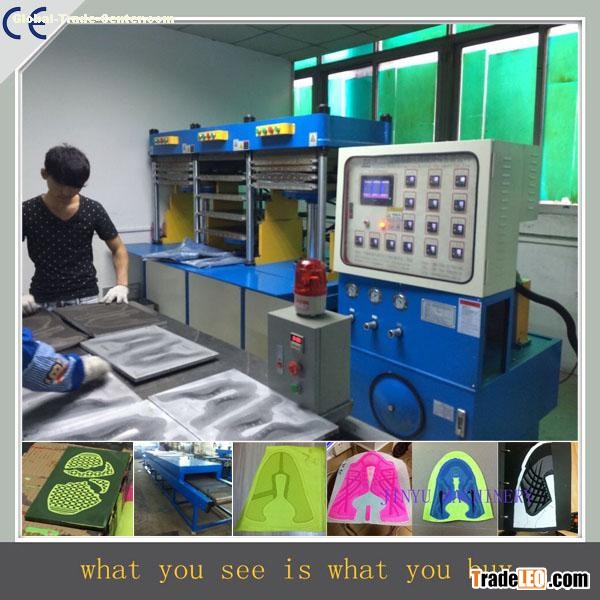

more details of machine:
oversea service:
main features of KPU shoe upper making machine:
1. Adopt the world advanced SOLIDEWORK3D software and finite element analysis of mechanical design, the optimum design is integrally molded high rigidity, precise structure, long service life.
2.Heating plate used for deep hole processing, and after carburizing, nitriding completed after grinding, using the principle of heat, the high accuracy, the optimal design with average temperature,HRC50-55 hardness, wear a long time, Not easy to be out of shape and it has high plane precision.
3.Using the technology of planar pressure correction, the maximum pressure(200KG)nut leveling device, the highest plane precision can reach 0.05MM
4.Unique oil circuit design, the oil circuit non impact and low noise in operation, increase the effectiveness, reduce the energy consumption.
5.Using circulation radiation cooling device, to ensure good heat exchange, low oil temperature, long life hydraulic parts, stability forming.
6.Intelligent PID control output, the difference of set temperature and actual temperature controlled in +-1 degree. It is economic and energy-saving.
7.importing the latest digital prototype testing technology, higher thermal performance, better stability than the traditional design.
8.Adopt imported famous brand digital temperature control, the precision of temperature controlled in +-2 degrees the program has a week preheating function.
