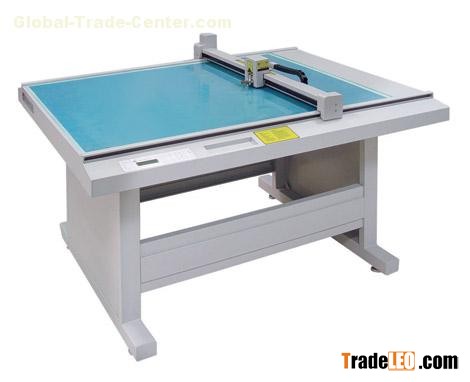

A1 speed glue cutter of synchronous belt
way of fixing paper way  double-side glue
driving material   import synchronous belt
effective cutting range  900*600mm
cutting materials red hard paper,plastic board,white board,kraft paper,fibre
cutting way   drawing by pen,half cutting,whole cutting
cutting thickness 0.5-2mm
cutting precision   less or equal 0.1mm
overlapping precision less or equal 0.1mm
resolution ratio  0.025mm
max speed   1000mm/s
work time and character  continuous work,operating computer and cutting at the same time,linear high-speed transmission for data
transmitting port   international standards:parallel port/RSC232 serial port
capacity of bufferarea  buffer area of large capacity,it can finish high-speed transmission on for data at a time
intruction set  international standards :HP-GL or DM-PL form can be selected,it is compatible with all kinds of CAD softwares
numerical control board   LTD,all-chinese operating menu,contacbutton
tool type  special steel blade
pen type   general signing pen,oil pen,ball pen
main structure   cutting platform,hesd driving system,control cabinet,control mirco computer,frame,vacuum pump(DE0906)
voltage  AC 220V±10% 50 HZ
fuse standard  5A
