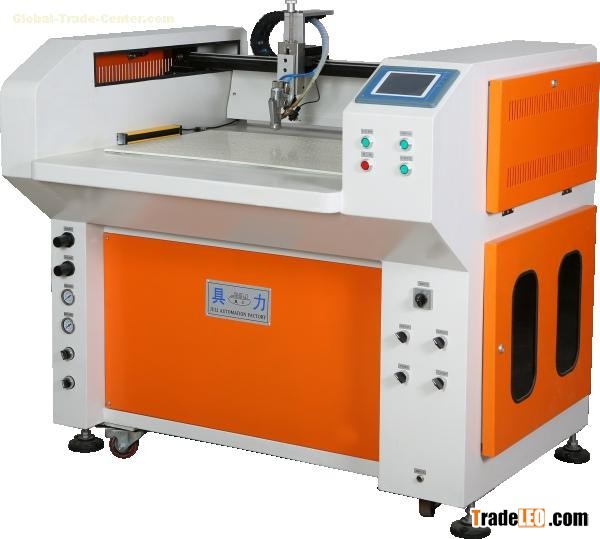

JL-P8050 CNC Spraying Machine
APPLICATION:
To glue large material together for industries including footwear,belts,handbags,
suitcases gift wrap ping etc.
WORKING AREA:
Effective working area 800mm*500mm
WORKING MATERIAL:
White gule,water-based glue.
FEATRUES:
1. To improve efficiency,save labor costs,speed fast,can save around 2~4 workers,
    effectively improve the production efficiency,reduce labor costs.
2. Save the glue,to reduce the cost:stable operation of the autonatic glue control
    system,adjustable coating plastic head,the spray width can be 3~50mmit saves
    glue 40%~60% than finishing by hand
3. High operation efficiency:spray uniform and thin,than the traditional brush glue
    dries,strength,workers paste fast,operation efficiency is high.
4. Easy opcration:the machine is designed with manually operation,foot pedal
    and automatic control system,besides,the touch screen can be set and stored
    graphics up to 999(regular or irrcgular)



    Model
JL-P8050 CNC Spraying Machine
Working Voltage AC220V
Rated power 0.75kw
Overall dimensions  1000x900x1400mm
Spray adhesive range 800x 500mm
The X axis drive motor 85 Series,45 NW hybrid two-phase stepper motor
The Y axis drive motor 85 Series,85 NW hybrid two-phase stepper motor
The Z  axis drive motor 85 Series,45 NW hybrid two-phase stepper motor
Convulsions way Wind tube axial flow fan
Gun under way Cylinder under the gun
Maximum speed 50mm/S
Effective work area X/Y axis 620500mm
The biggest drop Z axis 35mm
