Brand:Juli
Model:JL-150
MOQ:1 Sets
Send Inquiry

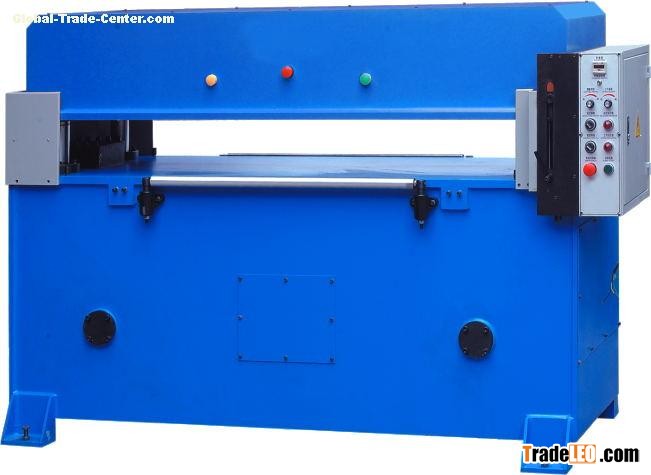

JL-150 auto balance hydraulic head cutting machine
Application Features
1.This machine with double hydro-cylinders,adopted the principle
of structure of automatic balanced
2.four-cikymn rod,ensuring the same multi-layer cutting and
3.automatic cutting of slow-speed system.
4.the central lubricating system ensures its precision and duality,
Specification:
| Model | Cutting force | Dimension | Cutting | Motor | Stroke | Net weight |
| JL-150/63" | 30Tons | 2330×1320×1260 | 610×1600mm | 2.2kw | 50-160mm | 1900kg |
| JL-150/48" | 30Tons | 1950×1320×1260 | 610×1220mm | 2.2kw | 50-160mm | 1800kg |
| 30Tons | 2330×1320×1260 | 610×1600mm | 2.2kw | 50-240mm | 2000kg | |
| 30Tons | 1950×1320×1260 | 610×1220mm | 2.2kw | 50-240mm | 2500kg | |
| JL-150/63" | 40Tons | 2330×1320×1260 | 610×1600mm | 4kw | 50-1600mm | 2400kg |
| JL-150/48" | 40Tons | 1950×1320×1260 | 610×1220mm | 4kw | 50-240mm | 2400kg |
| JL-150/63" | 50Tons | 2330×1320×1260 | 610×1600mm | 4kw | 50-160mm | 2900kg |
| JL-150/48" | 50Tons | 1950×1320×1260 | 610×1220mm | 4kw | 50-240mm | 2800kg |
