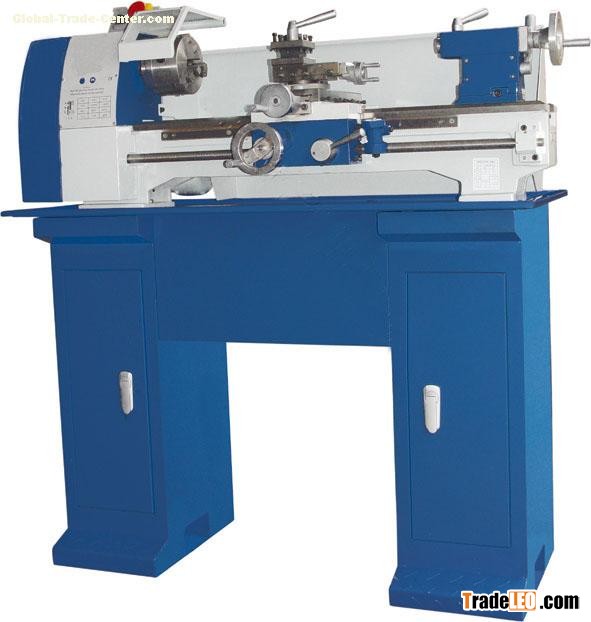

High Precision Bench Lathe TURN250
2016-10-04 08:13  Views:168
Price:0.00 USD/Sets
Brand:NOAH
Model:TURN250
MOQ:1 Sets
Send Inquiry

1.The  Precision Bench  LatheTURN250 is Widely  useful,  operation  very  easy , processing scope widespread.

2.Guaranteed concentricity precision of the main spindle less than 0.009 mm

3.Concentricity precision - lathe chuck smaller than 0.05 mm

4.Powerful,maintenance-free D.C. motor

5.Stepless spindle speeds from 150 to 1,250 rpm and 300 to 2,500 rpm

6.Induction-hardened and ground prismatic bed made from cast iron

7.High precision and hardened spindle

8.Safety magnetic and lock key European-standard switch

9.Cost-efficient, precise and of stable value



The Standard Accessories:

Speed display

3-jaw chuck 125

Splash guard

Chip pan

Lathe chuck protection

Tool holder protection

Quadruple tool holder spanner

Steady center MT4/MT2

HSS cutting tools

Change gears

Tools &Tool box



Optional Accessories:

Steady rest

Follow rest

Face plate

Stand

4--jaw chuck 125/160

Live center MT4/MT2

Halogen Lamp

Coolant pump

Quick change tool post

Thread chasing dial



Main Technical Specification:



Model

TURN250x550VARIO

Max. Swing over bed

250mm

Distance between centers

550mm

Spindle bore

21mm

Taper of Spindle bore

MT3

Range of Spindle speeds

50-2500rpm

Taper of tailstock quill

MT2

Metric threads can be cut

0.4-3.5mm

Inch threads can be cut

8-44TPI

Motor Power

750W

NW/GW

125/150Kg

Package Size(L×W×H)

1200x560X580mm
