Brand:Noah
Model:ZX7016
MOQ:1 Sets

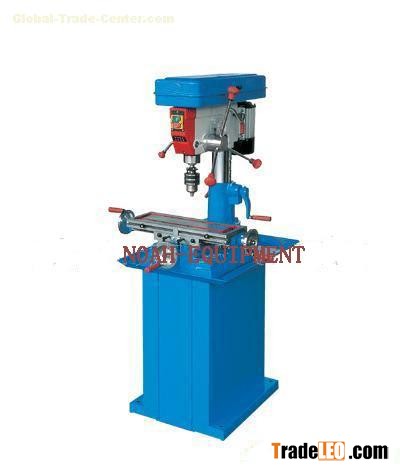

The ZX7016 Vertical Drilling and Milling machine is with milling,drilling,boring,mill,tapping and other cutting functions..And some parts headstock can turn to 90° at port and starboard side in the vertical plane,working table area can cross slide vertically in the horizontal plane,also can turn to 45° at port and starboard side.
The ZX7016 Vertical Drilling and Milling machine is suitable for processing of the medium and small-size workpiece,especially cutting of non-ferrous materials,plastic,nylon.It has a simple structure,flexible operation,etc.
The ZX7016Vertical Drilling and Milling machine is widely used in the single or batch machinery manufacturing,instrument industry,architectural decoration and repair department.
Main technical specification:
| Max drilling capacity | 16mm |
| Max face milling capacity | 50mm |
| Max end milling capacity | 12mm |
| Max spindle travel | 115mm |
| Distance from spindle center to stand column surface | 240mm |
| Max distance from spindle nose to working table | 307mm |
| Taper of spindle bore | MT.2 |
| Range of spindle speed | 235-2050rpm |
| Spindle speed series | 5 |
| Working table-board size | 560*200mm |
| Working table travel | 236*128mm |
| Whole heright | 972mm |
| Motor power | 550w6 |
| GW/NW | 185/165kg |
| Packing size | 92*71*88cm |
