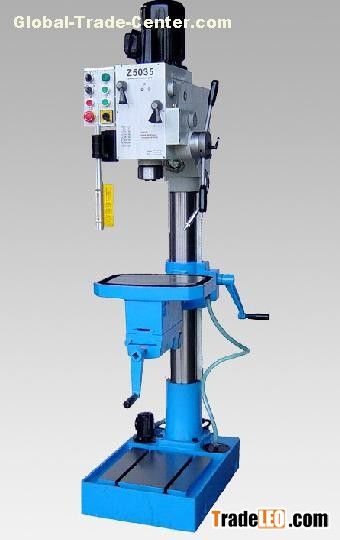

Z5035 mini drill press is designed for drilling, counterboring, reaming, tapping, spotfacing, etc. The maximum drilling capacity is 35mm on small or middle sized workpieces.
Z5035 mini drill press is widely used in machine works and repair shops for single piece or small lot production, having the features of abundant horsepower and high rigidity when compared with all the others of its kind at home and abroad.
Main technical specifications:
| Maximum drilling diameter | 35mm |
| Taper of spindle hole | MT4" |
| Distance from the center of spindle to the surface of the vertical column | 350mm |
| Maximum travel of spindle | 180mm |
| Range of spindle speed | 104-1450rpm |
| Maximum distance from spindle nose to base plate working surface | 1320mm |
| Maximum distance from spindle nose to working table | 770mm |
| Dimensions of working table | 560×385mm |
| Dimensions of base | 730×405mm |
| Width of T-slot | 18mm |
| Distance of T-slot of working table | 125mm |
| Distance of T-slot of base | 150mm |
| Range of feed | 0.1,0.2 |
| Power of main motor | 1.5kw |
| Power of coolant pump | 60w |
| Overall dimension(L×W×H)mm | 730×560×2220mm |
| Packing size(L×W×H)mm | 1100×610×2270mm |
| Gross weight/net weight | 595/545kg |
