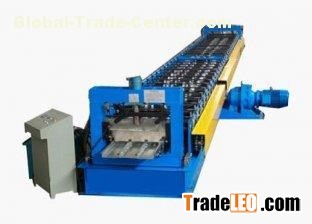

1250 mm Width metal Deck Roll Forming Machine, metal Forming Machinery

1.Production Characteristic and use:
The metal deck roll forming machine adopt new station, it is increase the strength of the machine;; the metal deck end product widely used in floor flat, after make dots of the sheet it is can increase of friction between the steel and concrete, thereby increasing the floor of the fastness

2.Main Technical Specification:
Material width:1250 mm
Material thickness: 0.8-1.5mm
Work speed: 12-15m/min
Roll station: 32 stations
Main power: 22KW(two 11KW)
Hydraulic station power: 5.5KW
Control system: Panasonic brand PLC
Drive: by chain
