Maccaferri gabion baskets Gabion baskets/PVC coated gabion basket/Galvanized gabion basket

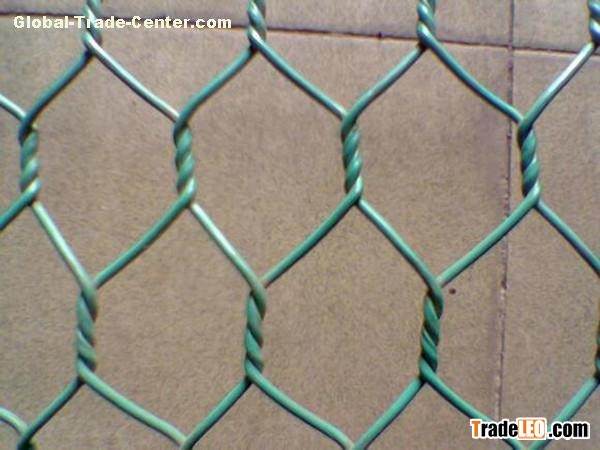

Are made of hexagonal double twist woven wire mesh

Gabion baskets filled with stone

Keywords: Gabion, gabions, Gabion cage / gabion basket

Mesh wire:

2.0mm-4.0mm

Mesh size:

6x8m, 8x10m, 10x12m, 12x15m, 16x18m

Size:

1x1x1m, 2x1x1m, 3x1x1m, 4x1x1m, 2x1x0.5m, 4x1x0.5m

Selvedge wire diameter:

3.2mm-4.2mm

Lacing/tie wire:

2.2mm/3.2mm

Weave style:

Double twist hexagonal mesh

Finish can be hot-dipped galvanized, galvanized aluminum alloy or PVC coated, etc.

Gabion basket are wire fabric containers, uniformly partitioned of variable size, interconnected with other similar containers and filled with stone at the site of use to form flexible, permeable, monolithic structures such as retaining walls, sea walls, channel linings, revetments and weirs for earth retention. Gabion basket are cages, cylinders, or boxes filled with soil or sand that are used in civil engineering, road building and military application.

Gabion basekt structures yield to earth movement but maintain full efficiency. They are quite unlike rigid or sem-rigid structures which may suffer catastrophic failure when even slight changes occur in their foundations. Highly permeable, the gabion structures act as self draining units which "bleed" off ground waters, relieving hydrostatic heads. Interstitial spaces in the rock fill dissipate the energy of flood currents and wave action. Efficiency in gabion structures, rather than decreasing with age, actually increases.

Gabion baskets Surface Treatment:

Heavily zinc galvanised wire

As above plus heavy duty PVC coating

Galmac (galfan) coated with a 95%Zinc + 5% Aluminium Mischmetal Alloy

As above plusheavy duty PVC coating

Advantages of Gabion basket:
