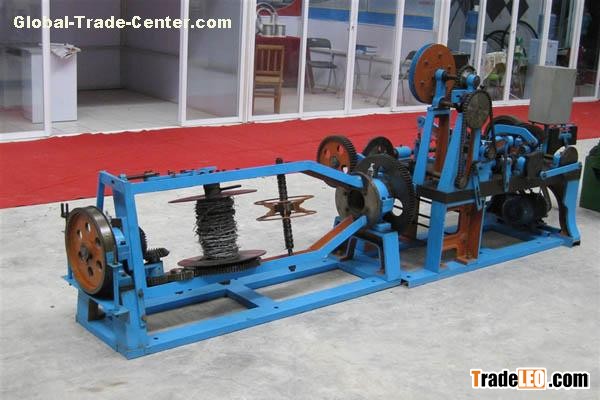

Reverse Twisted Barbed Wire Machine

Reverse twisted Barbed Wire Machine for Two-strand Wire with Two-way Twists can produce the barbed wire with two-way twists. This way is easy to operate and install as they will not en-twist each other.

Specification:

Item

Motor 2.2kw

Rated output 40kg/h

Weight 1200kg

Overall Dimension 1900mmx1300mmx980mm

Wire collection part size 1300mmx800mmx700mm

Barb pitch spacing 76mm 102mm

Twist 4

Strand Diameter 1.6-2.8mm

 Wire Diameter 1.6-2.2mm

Rotating Speed of Drive shaft 432r/min

Finished Products & Application:

It is widely used in national defense, railway, highway, agriculture, animal husbandry and other industries
