Hexagonal Wire Mesh

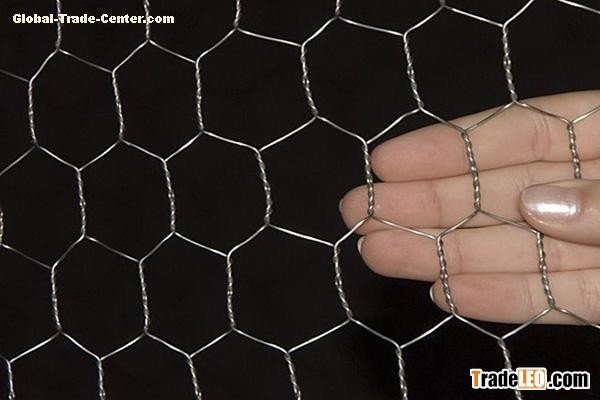

Hexagonal wire mesh is also known as Chicken wire mesh or hexagonal wire netting, it is consists of hexagonal shaped meshes, formed by twisting adjacent wires two by two, alternatively forming a twist to the right and to the left. the netting may have a border composed of one, two or more selvedge wires with a greater diameter than that used for the mesh, for widths above 50 cm or more stretching wires may be woven in the netting at equal distances

Materials: high quality low carbon steel wire, stainless steel wire, hot-dipped galvanized hexagonal wire mesh, electro galvanized hexagonal wire mesh and PVC-coated hexagonal wire mesh etc.

Weaving Methods: straight twist, reverse twist, double-direction twist, galvanization after weaving, galvanization before weaving.

Assortments Available:

1.Hot dipped galvanized before/after weaving

2.Electro-galvanized before/after weaving

3.Pvc coated hexagonal iron wire netting

4.Stainless steel hexagonal iron wire netting

Features:

Firm structure

Flat surface

Corrosion-resisting and oxidation-resisting

Applications:

Hexagonal wire mesh can be used for breeding chicken, duck, goose, rabbit and oxidation-resisting in zoo, machinery equipment's protection, speedway's fencing, stadium'to purse net, the evanescence belt protection mesh on the road.

Packing: Hexagonal wire mesh is packed in rool, wrapped with waterproof paper. Special packing may be arranged upon request.

Specifications:

Material Wire dia.Mesh Width Length

Galv. After Galv. Before Vinly coated / PVC coated

Stainless Steel

17 gauge/0.054"/1.4mm 17.5 gauge/0.051"/1.3mm 18 gauge/0.047"/1.2mm 19gauge/0.041"/1.0mm 20 gauge/0.035"/0.9mm 22 gauge/0.028"/0.7mm

3"/75mm 2"/50mm 1-5/8"/41mm1-1/2"/38mm1-1/4"/31mm1"/25mm

3/4"/19mm1/2"/13mm12"/305mm18"/455mm24"/610mm30"/762mm

36"/915mm40"/1060mm48"/1220mm60"/1524mm72"/1830mm 90"/2286mm6m/12m25m/30m25'/7.62m

50'/15.24m100'/30.5m150'/45.72m
