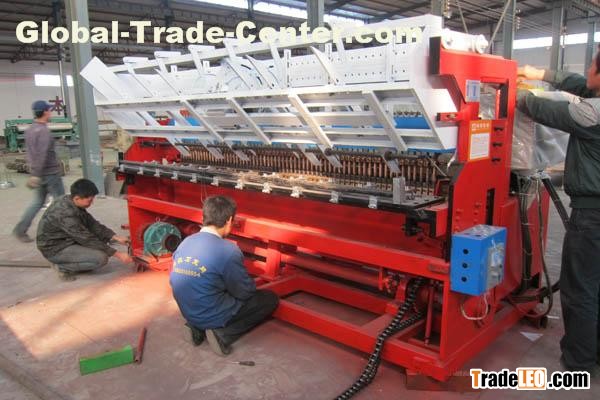

Construction Steel Wire Mesh Row Welding Machine

Feeding mode: coil feeding

The precision weft cutting device and the axial positioning device are provided for wefts to ensure that the wefts are not required to be trimmed due to consistent length and tidy edges.

Welding: full-automatic welding

A power electronic synchronous control technology is adopted, both welding time and branch control welding are formed by a digital integrated circuit, the control accuracy is high, welding sports are firm, and burn marks cannot be formed.。

Finished products: flaky meshes, coiled meshes (optional)

Meshes are drawn by an elastic pull rod and a grid positioning device, so that grids are easy to adjust slightly and high in dimensional accuracy, and the apertures of welded meshes can be adjusted at random in a certain range.

Application:

Construction meshes, Shiloh plate meshes, geothermal meshes, seedbed meshes, flower room meshes

Welding wire diameter 1.4-2.5mm Rated voltage 380V, 420V (customizable)

Welding aperture 50x50-200x200MM Rated power Customized

Welding width 1200mm Dimensions 1.8x2.5x1.8m

Warp quantity 25 Machine weight 3.2t

Welding speed 80times/min

The above parameters can be customized according to customer requirements.
