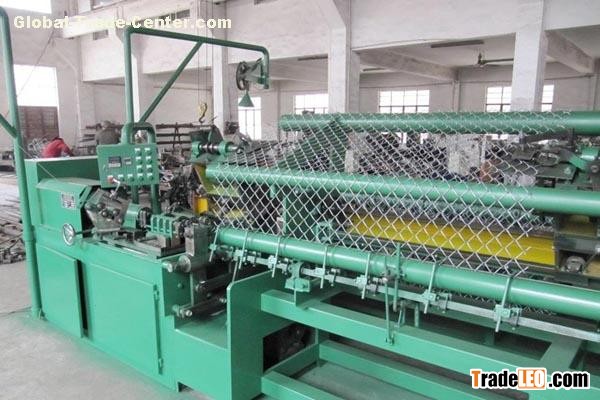

Automatic chain link fence machine

Chain link machine for manufacturing chain link fences of different sizes. The wire is taken in from the payoff stand and passed through the dies where the DIAMOND SIZE takes place. Different gap sizes. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process. once the stitching is complete the woven is manually glided down to enable the next stitch to take place.

The chain link is automatically wound to form rolls when the desired length is manufactured.

The machine is controlled by PLC automatic controller, so only one person is needed to operate it.

Electric System:

The machine is controlled by PLC automatic controller

Germany Siemens PLC origin

The inverter is selected from high quality products

Of Japan”YASKAWA”

Electrical

Low-voltage electrical from Germany Schneider

Electric&Machinery from Taiwan Teco Electric

Clutch from Taiwan YA CO,.LTD

Product Name Automatic Chain link Fence Machine

Wire Diameter(mm) 1.8-4.0mm Feeding Wire numbers:two(Note:Steel Wire Standard:GB3081-82)

Mesh Size(mm) 30x30-100x100

Netting width(mm) 600--4000

Capacity(m2/hour) 60-120

Rated Voltage 380V,50HZ

Motor Power 9.0KW

Weight (T) 40

Outside Size 7000*1430* 1800mm 5000*1700* 1250mm

Delivery time 30days
