We have developed a new product: GalFan + PVC Coated woven wire mesh gabions.

Popular mesh opening applied: 80x100mm. One diaphragm every one meter (or at 3ft

center) is positioned to divide the gabions into cells. This structure makes the

whole gabion flexible and easy to handle. This type of woven or knitted mesh gabion

has selvedge wire and lacing wire for reinforcement. All mesh panel edges are

selvedged with a wire having a greater diameter than the woven or knitted wire.

Galfan Gabion Mesh

Mesh wire Gi. Dia.:2.0mm,2.2mm,2.7mm

Selvedge Wire Gi.Dia:2.7mm,3.0mm,3.4mm

Galvanized,Galfan,PVC Coated.

Gabion 39 systems, Welded Mesh Gabions, gabion  baskets.

Gabion 39 systems are manufactured from dimensionally stable panels of mesh, that

are formed by welding transverse and longitudinal wires at each and every

intersection to form a grid.

Knitted or woven wire: 3.7mm after PVC coating (2.7mm heavy Galfan before pvc

coating)

Selvedge wire: 4.2mm after PVC coating (3.2mm heavy Galfan before pvc coating)

Lacing wire: 3.2mm after PVC coating (2.2mm heavy Galfan before pvc coating)

Zinc plating or galvanization required for the Galfan Gabions:

Galvanization on Kitted & Lacing wire: Heavy GALFAN (ZnAL) min 245gr/m2

Galvanization on Selvedge wire: Heavy GALFAN (ZnAL) min 255gr/m2.

The steel wire used in the manufacturing of the gabion is heavily galfan( [Zn-5 Al-

MM] alloy) coated soft temper steel. A PVC coating is then applied to provide

additional protection for use in polluted, contaminated or aggressive environments:

in salt, fresh water, acid soil or wherever the risk of corrosion is present. The

PVC coating has a nominal thickness of 0.50 mm to 1.00mm. Galfan plus PVC coating

gabions, simplified as Galfan gabions, are strong and durable for long term uses.

200x30x30cm size 50x100mm mesh galfan welded gabion

Normal Out Sizes:

Gabion 1X1X1M

Gabion 2X1X1M

Gabion 3X1X1M

Mattress 3X2X0.17M

Mattress 3X2X0.23M

Mattress 3X2X0.3M

Mattress 6X2X0.3M

Common Mesh Sizes:

6x8cm,8x10cm,10x12cm,12x15cm,16x18cm

Regular size for gabion box:

wire diameter:2.7x3.4x2.2mm,mesh size:80x100mm,box size:2x1x1m

Regular size for gabion mattress:

wire diameter:2.2x2.7x2.2mm,mesh size:60x80mm,mattress size:3x2x0.3m

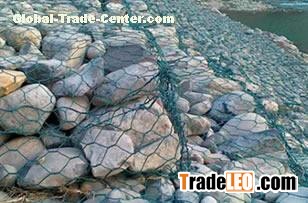

Applications of Galfan Gabions:

The Galfan gabion boxes or mattresses are filled with stones at the project site to form flexible, permeable, monolithic structures such as retaining walls, channel

linings, and weirs for erosion control projects.

Details as following:

Earth Retaining Structures

Reinforced Soils

River Training

Coastal Protection

Canal Lining

Dam Overflows

Scour Protection

Marine Revetment

Rock Fall Protection

Headwall Construction

Controlling and leading the river and flood.

Flood discharge and lead flow.

Protecting the bridge.

Seaport project.
