Brand:Yishen
Model:YS1
MOQ:500 Square Met

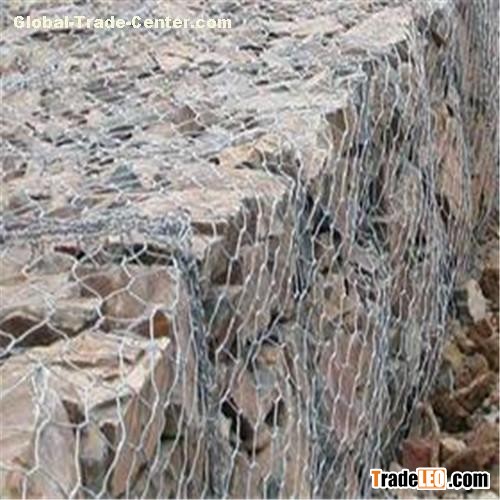

1. Gabion mesh
Gabion wire mesh is a box type net cage with heavy duty six angles net, so it is called "the stone cage net or stone cage net cage",
| Materials | Low carbon iron wire |
| Size of units (length x width x height) | 2x1x1m or as your requirement |
| Opening mesh size | 80x100mm;80x120mm;100x120mm;ect or as your demand |
| Type of coating | electro galvanized ;hot dip galvanized ;PVC |
| Mesh Diameter | as the customers' requirement |
| Selvedge wire diameter | 3.0mm or as your customization |
| Tie wire/lacing wire diameter | 2.2mm or as your like |
| Other | As your request |
| Specification of gabion box & gabion basket& gabion mattress | |||
| Hole size(mm) | Wire diameter(mm) | Inner/outside(mm) | Biggest width(mm) |
| 60x80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 4.3 |
| 80x100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 4.3 |
| 80x120 | 2.0-3.2 | 2.0/3.0-2.8-3.8 | 4.3 |
| 100x120 | 2.0-3.4 | 2.0/3.0-2.8-3.8 | 4.3 |
| 100x150 | 2.0-3.4 | 2.0/3.0-2.8-3.8 | 4.3 |
| 120x150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 4.3 |
