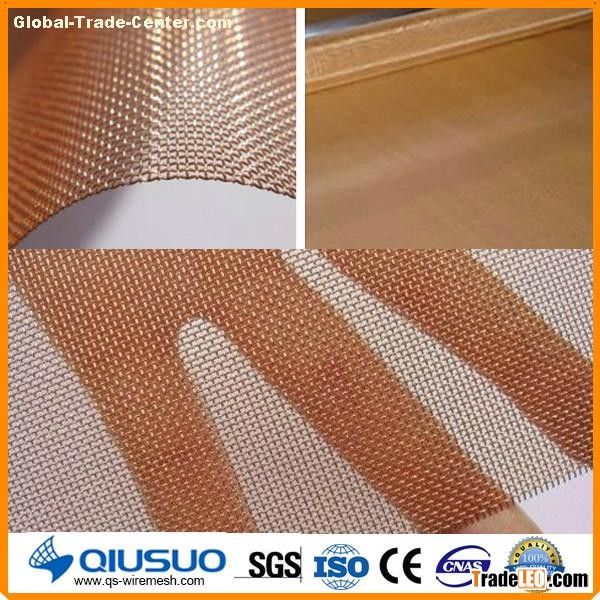

>>Red Copper Wire Mesh Profile

Red Copper Wire Mesh is woven with Pure copper wire 99.9%, Annealing to make the wire more flexible, Class A process.

The soft and malleable properties of copper metal make it ideal for woven wire mesh and wire cloth.

It is often used in industry for its properties of high electrical conductivity and thermal conductivity as it conducts heat up to eight times better than other commonly used metals.

>>Red Copper Wire Mesh Specifcation Introduction

1.Red Copper Wire Mesh Material:

•     red copper wire--purity--Cu:99.8%

2. Red Copper Wire MeshWeave type:

    Plain weave,twill weave,dutch weave

3.Red Copper Wire MeshCharacteristics:

•     non-magnetic, wear resistance

•     acid and alkali resistance, good ductility

•     good conductivity, good heat transfer performance

4.Red Copper Wire MeshApplication:

Copper wire mesh frequently utilized in applications requiring shielding of electromagnetic interference (EMI).

The reduction or exclusion of Electro-magnetic interference is dependent upon the signal amplitude and frequency in relation to the many combinations of mesh count, wire diameter and weaving materials available.

5. Production range:

•     wire diameter: 0.04-1mm

•     mesh counts: 3-200 mesh

•     common roll width:1m, 1.2m, 1.5m, 1.8m, 2m

•     common roll length:30m, 50m, 100m

>>Red Copper Wire Mesh Specifcation List

Copper Wire Mesh
Mesh Size		Wire Diameter		Aperture	Weight
/inch	/cm	SWG	mm	mm	kgs/M2
4	1.57	22	0.71	5.64	1.12
5	1.97	24	0.55	4.53	0.84
8	3.15	26	0.45	2.73	0.9
10	3.94	27	0.41	2.13	0.93
20	7.87	30	0.31	0.96	1.06
22	8.66	32	0.27	0.88	0.89
24	9.45	33	0.25	0.81	0.83
40	15.75	38	0.15	0.49	0.5
44	17.32	39	0.13	0.45	0.41
50	19.69	40	0.12	0.39	0.4
50	19.69	41	0.11	0.4	0.33
60	23.62	42	0.1	0.32	0.33
60	23.62	40	0.12	0.3	0.48
80	31.5	40	0.12	0.2	0.64 Contact Infomation Send Inquiry Company name:Hebei Qiusuo Wire Mesh Products Co., Ltd. Status:[Offline] [Send message] [Chat] Business contact:Sandy Zhou (Ms.) Telphone: Mobile: Area: Caribbean Region-Bermuda Address:Industrial Development Zone, Anping, Hebei, China. Zip:053600
