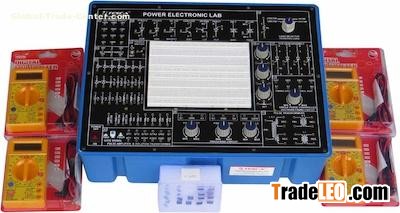

Power Electronics Lab is used to perform power electronics circuit experiments. It is very useful in power electronics laboratories for performing power experiments in colleges and universities. It is very for student to know about the characteristics of power electronics devices and the applications of power devices. The applications or power devices are in alarm circuit, lamp flasher, rectifiers, choppers, invertors. It is also used for commutation circuits.The Equipment is Useful for Students at level in engineering / technical institutes (EC & Telecom) Technical training centers in communication organizations, R&D personal and practicing engineering in research labs and industry.

Technical Specifications:

DC Power Supply on Board : ± 5V at 100mA

: ± 12V at 150mA

: ± 15V at 50mA

: ± 35V at 50mA

AC Power Supply on Board : 18V - 0V - 18V at 50mA

: 15V - 0V - 15V at 50mA

Triggering Circuit on Board : 5 gate signal output

Frequency range : 40Hz to 900Hz Variable

Amplitude : 12V PWM control of G1,G2,G3 and G4 Duty cycle control of “Gate” Signal is 0 to 100%

Single Phase Rectifier : Firing angle control 0°-180° variables

Firing Circuit on Board : Four gate signal output with isolation

SCR Assembly : 4 SCRs 2P4M, 600V,2A

Power Devices : IGBT-G4BC20S, MOSFET-IRF540, UJT-2N2646, DIAC-DB3, TRIAC-BT136, PUT-2N6027

Circuit Components On Board : Capacitor 0.01uF, 0.047uF , 0.1uF, 0.33uF, 1uF/63V(4Nos.) 2.2uF/50V

Diode 1N4007 (8Nos.)

Zener Diode 9V (1Nos. )

Inductors 10mH, (1Nos.), 68mH (2Nos.)

Load Resistance 120E, 270E, 1K, 2K2, each 5W

Resistance on Board (½ W) 22E/5W, 100E/2W, 220E/2W

Resistance on Board(1/4W) 10K (3Nos.), 22K,33K,47K,

Potentio Meter 4K7(2Mos.), 1M(1Nos.)

Pulse Transformer on Board : 2 Nos. PT4502, 1:1 and one is PT4503 1:1:1

Toggle Switch : SPST (1Nos.)

Power Requirements : 220V ±10%, 50Hz
