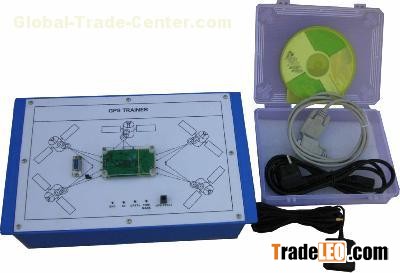

Global Positioning System technology is rapidly changing how people find their way around the earth. Whether it is for fun, saving lives, getting there faster, or whatever uses you can dream up, GPS navigation is becoming more common everyday. GPS Trainer will provide a basic understanding of the GPS Fundamentals, Satellites & Design Aspects of GPS Receiver by actually connecting to the Satellite by GPS Antenna. The Equipment is Useful for Students at B.Tech/B.S. & M.S level in engineering / technical institutes (EC & Telecom) Technical training centers in communication organizations, R&D personal and practicing engineering in research labs and industry.

SPECIFICATION & FEATURES

Channel : 12

Frequency : L1 C/A

Position Accuracy : 25 meters CEP without SA

Velocity Accuracy : 0.1 meters/second, without SA Off

Time Accuracy : Synchronized to GPS time

Update rate : 1/sec. (1 PPS) signal

Receiver Sensitivity : -175 dBW

Input Voltage : +5VDC

Current (Avg.) : 180 mA

Push Button for Reset

Serial Communication : 4800 Baud (default)

Protocol Messenger : NMEA0183V2.2,SIRF binary & RTCMSC -104V 2.0 type 1,2,9

Maximum Altitude : 18000 meters (60,000 Feet) max.

Maximum speed : 515 meters/sec. (1000 knots)max.

Acceleration : 4g. maximum

Jerk : 20 meters/sec-3 max.

Time to First Fix : 45 / 38 / 8sec Cold/Warm/Hot Start

PC Interface - RS 232 Port

Operating Temperature : -40° C to +85° C
