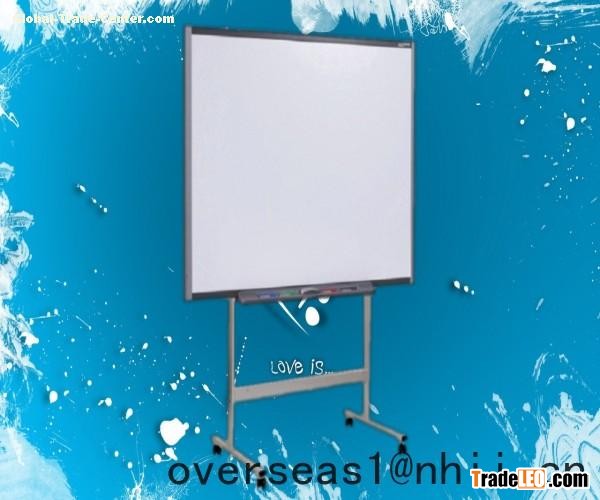

2inch Electromagnetic interactive whiteboard
Specifcations of the Electromagnetic interactive whiteboard
| 1. Model: | EGN/EGU92 |
| 2. Screen Size diagonal (inch): | 88 |
| 3. Net Weight(Kg): | 32 |
| 4.Active Writing Dimensions(mm) | 1080*1970*25 |
| 5. Gross Weight (kg): | 40.6 |
| 6. Whiteboard Dimension (mm): | 1160*2050*28 |
| 7. Package Dimension (mm): | 1270*2150*130 |
| 8. Orientation Precision: | 0.05mm |
| 9. Orientation: | 5-point /9-point |
| 10. Induction Height: | 1cm |
| 11. Working Principle: | Electromagnetic Induction |
| 12. Projection Ratio: | 16:9 |
| 13. Resolution: | 39400*21600 |
| 14. Attachment Accessories: | 2-pc electromagetic pen, 10-meter USB line, 1-set Hanging-to-wall Accessories, 1-pc Software Installation CD. |
| 15. Transmission Interface: | USB |
| 16. Opearating System: | windows98/2000/2003/xp/vista |
| 17. Output Power: | ≤1w |
| 18. Working Style: | Control model/window model/annotation model |
| 19. Power Supply Model: | USB power supply without any external power supply |
| 20. Product Warranty: | 5 years |
| 21. Working Temperature: | -10°C-50°C |
| 22. Storage Temperature: | -20°C-60°C |
| Face of the Whiteboard: | |
| Adopting the advanced waterproof and anti-abrasion board materials with a high definition displaying facility, you can use the general cleanser or alcohol to clean the whiteboard |
| Main Founction. | |
| 1. Writing function: | Users can choose and write freely. |
| 2. Editing function: | Users can modify the ideas easily with copy, paste, eraser and etc. |
| 3. Screen function: | Users can utilize the curtain, focus lamp, camera and recorder to attract audiences. |
| 4.The meaning of each letter and number. | (1) E:Electromagnetic induction. |
| (2) G:The panel of whiteboard is good. |
| (3) N:Normal, there is a normal film on the whiteboard on which you can not write directly with ink pen. |
| (4) U:Upscale, there is an upscale film on the whiteboard on which you can write with an ink pen and the writing can be cleaned by a cleanly damp cloth. |
| (5) 40/72/82/92/100:The size and diagonal of the whiteboard.The diagonal of EGU40 is |
